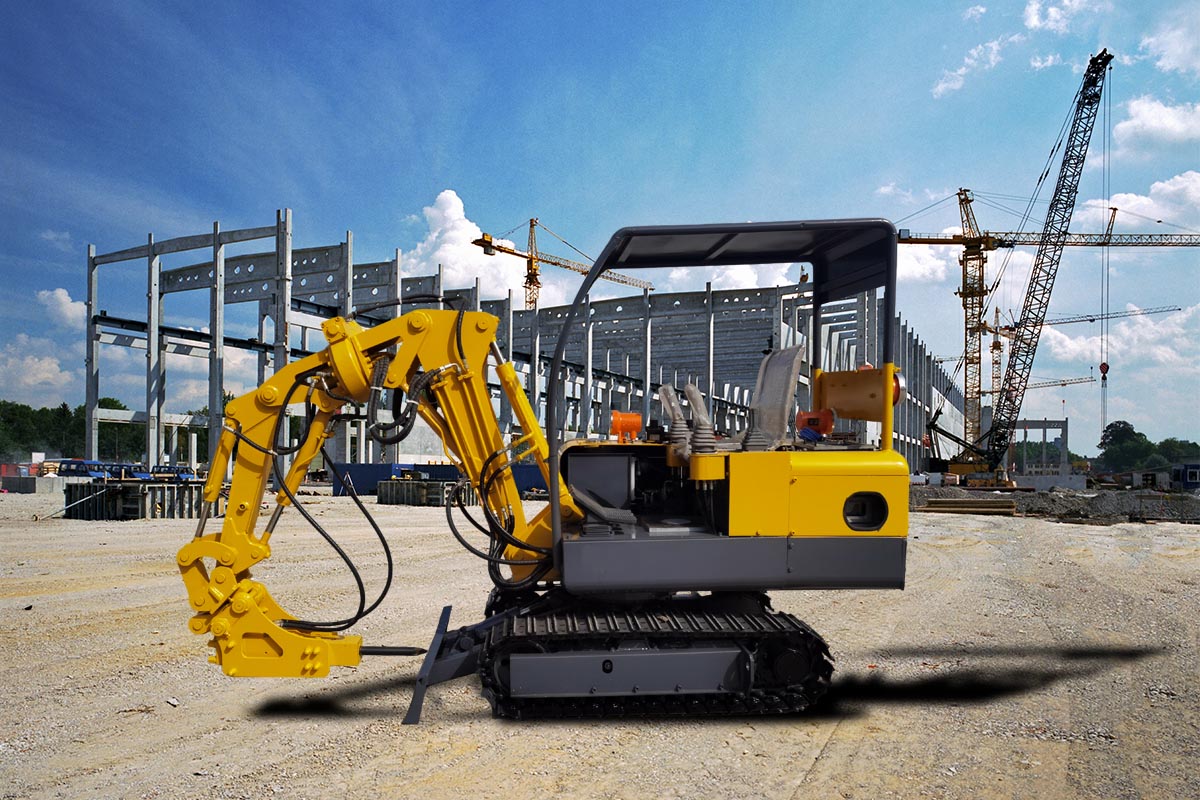

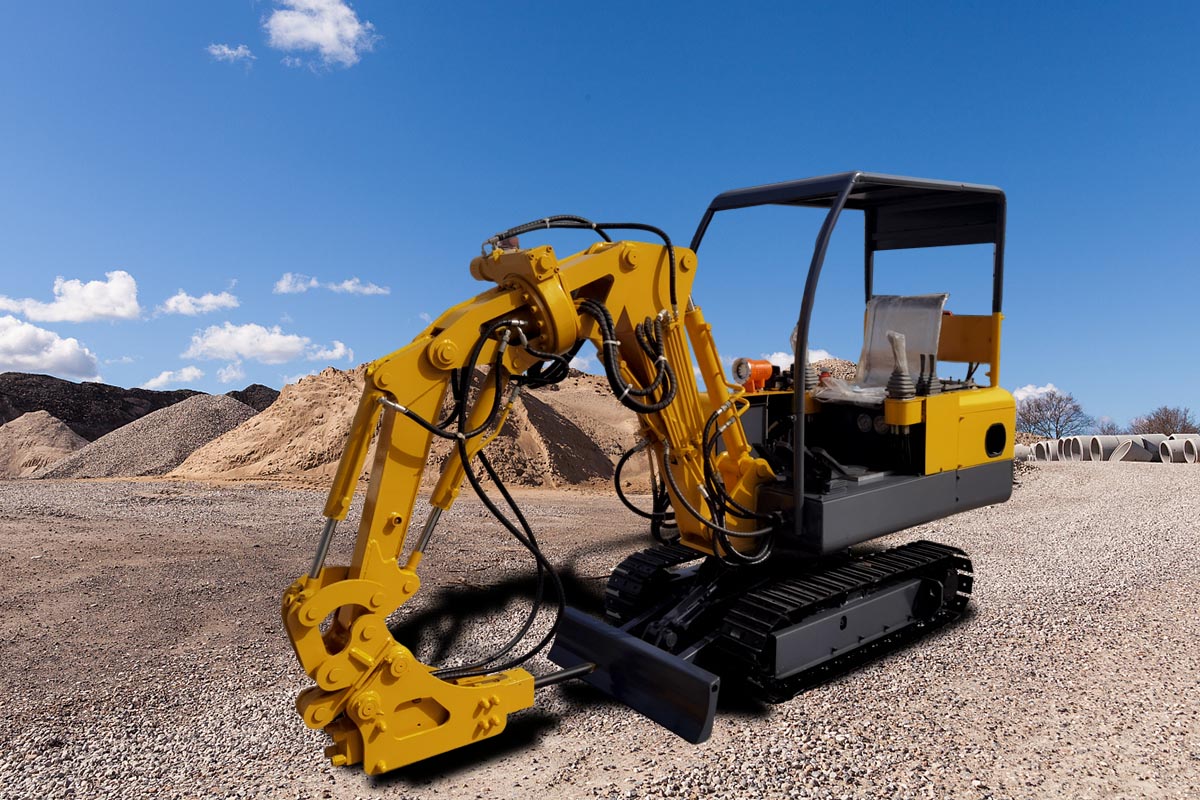

GC-R18.5 Coal Mine Roadway Repairing Machine is a high-efficiency equipment specially designed for repairing narrow roadways in coal mines, with a weight of 2.3T and a compact body of 3300mm×950mm×2150mm (can be lowered to 1500mm), it can easily travel through the restricted space in coal mines, and its width can be widened by 50mm to enhance stability. 18.5kw motor power provides strong power, bucket capacity 0.12±0.015m³, maximum digging force ≥13kN, equipped with 45 crushing hammers, it can accurately complete a number of tasks, such as support for the roadway in coal mines. The 18.5kw motor provides strong power, the bucket capacity is 0.12±0.015m³, the maximum digging force is ≥13kN, and it is equipped with 45 crushing hammers, which can accurately complete a number of tasks, such as roadway support, cleaning, and repair, and provide a strong guarantee for the safety of the underground roadway in the coal mine.
Usage Scenarios
Roadway support and repair: In the underground mining roadway or tunneling roadway, the base width of 950mm can travel flexibly between the supports, and the minimum turning radius of the track of ≤1.7m is convenient for turning in the limited space. The maximum digging height of ≥3600mm is able to carry and install the support materials at the top of the roadway, and the 360° rotating angle makes the operation more flexible, and it is easy to complete the support repair work of the roadway roof and two gangs.
Roadway cleaning: When there is floating coal and gangue accumulation in the roadway, GC-R18.5 can clean it efficiently. The maximum digging radius of ≥3800mm can cover a large area, the maximum digging depth of ≥1150mm can clean the bottom of the roadway sediment material, and the maximum unloading height of ≥1800mm is suitable for the transfer of underground mining trucks to ensure a smooth roadway transportation channel.
Roadway Shaping and Repairing: For deformed and damaged roadways, the equipment's ≤16°climbing ability can adapt to the undulating terrain of the roadway, the 13kN digging force of the bucket can accurately repair the roadway contour, the 45 crushing hammer can crush the hard gangue or protruding rock in the roadway, and the grounding pressure of ≤0.08mpa can avoid excessive damage to the bottom plate of the roadway, and restore the design section of the roadway.
Main parameters
Model | GC-R18.5 |
Weight | 2.3T |
Overall dimension(L×W×H) | 3300mmX950mmX2150mm(1500mm)+50mm(Can be widened) |
Bucket Capacity | 0.12±0.015m³ |
Max Excavating Height | ≥3600mm |
Max Excavating Depth | ≥1150mm |
Ground clearance | ≥200mm |
Max Discharge Height | ≥1800mm |
Maxvertical dingging depth | ≥900mm |
Traveling Speed | 0.89km/h |
Nominal working pressure | 18/20mpa |
Rotation angle | 360° |
Motor Power | 18.5kw |
Maximum excavation radius | ≥3800mm |
Maximum digging forcebucket | ≥13kN |
Climbing ability | ≤16° |
Ground pressure | ≤0.08mpa |
Minimum turning radius of track | ≤1.7m |
Broken hammer | 45 |
Why GC-R18.5
Nimble figure, smooth travel underground: 950mm narrow body design, can be lowered to a height of 1500mm, with ≤ 1.7m minimum turning radius of the track, in the underground narrow tunnel, support gap and other restricted space to travel flexibly, easy to arrive at the repair work point.
Comprehensive functions, efficient repair: set digging, crushing, handling and other functions in one, 0.12 ± 0.015m³ bucket and 45 crushing hammer with 13kN digging force can efficiently complete the roadway cleanup, shaping, support and other tasks, reduce equipment investment, enhance the repair efficiency.
Safe and stable, adapt to the underground: 2.3T machine weight with a wider track to enhance the stability of the equipment; ≤ 0.08mpa ground pressure to protect the roadway floor; low-speed walking design in line with the requirements of underground safety operations, to ensure that the repair process is safe and reliable.
Strong power and flexible operation: 18.5kw motor provides sufficient power, 18/20mpa dual rated working pressure can be adjusted according to the operational requirements; 360° rotating angle and flexible operation performance, so that the repair work of all parts of the roadway can be completed accurately.
Contact us today for customized configurations and real-time quotes.
