GC-F2.0S

Basic parameters

Vehicle weight:2.8T

Voltage:60V

Lifting height:2000kg

Product Information

Product Introduction

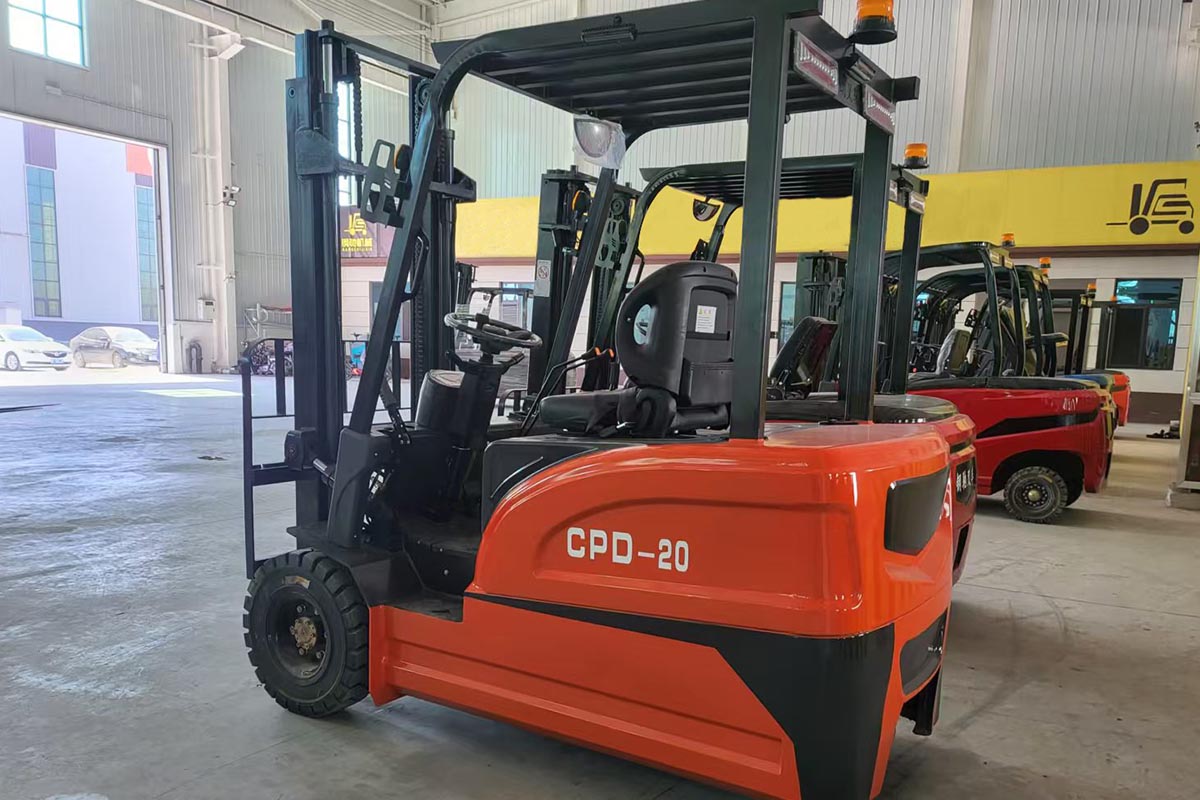

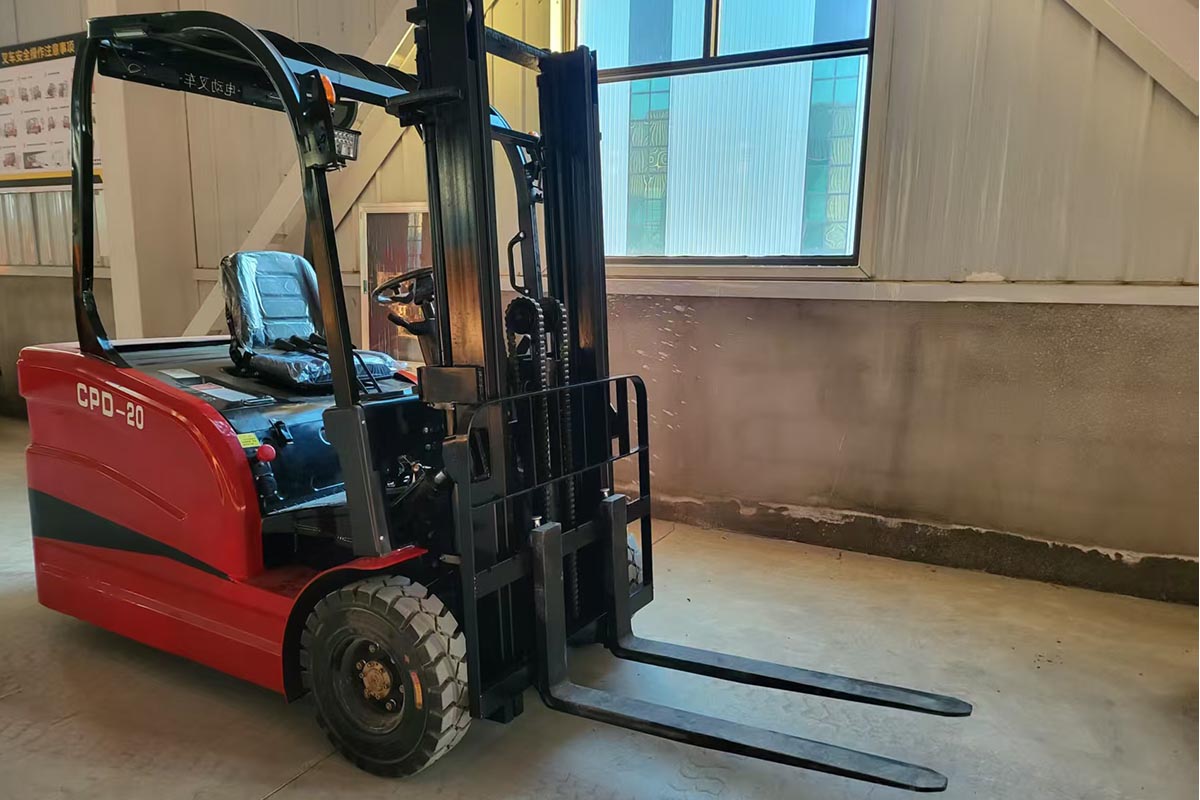

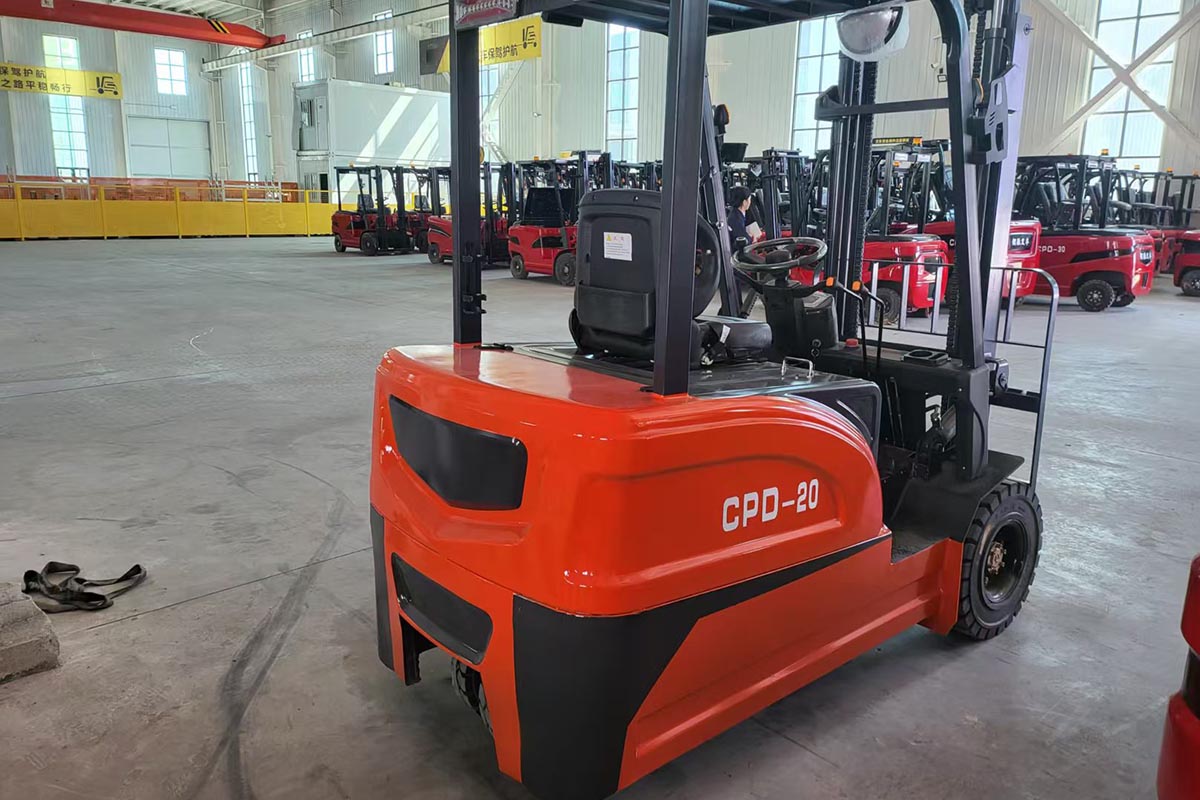

GC-F2.0s is a pure electric forklift focused on medium and large handling tasks, integrating high load, high stability and high durability.

It adopts 5000W Brushless AC Motor, combined with full-load chassis structure and hydraulic power system, while achieving zero emissions, it can also handle high-frequency and high-load operations.

It is the main handling equipment in manufacturing enterprises, storage centers and industrial logistics.


Applicable scenarios


Manufacturing: heavy goods transfer, raw materials in and out of the warehouse;

Warehousing and logistics: large pallet handling, centralized loading and unloading;

Building materials market: stacking and handling of plates, steel pipes, and finished equipment;

Indoor assembly area: low-noise and environmentally friendly operation demand environment;

Forklift rental service: mainstream tonnage, general type, widely used.


Main parameters

ModelGC-F2.0S
Vehicle weight2800kg
Lifting height3000mm
Body material

Thickened one-piece stamped body

Travel motor5000W brushless inverter AC motor
Voltage60V
ControllerAnti-slip high-power controller
Drive axleFully floating one-piece heavy-duty low-speed drive axle
TireFront and rear wheels national standard brand solid wear-resistant tires
Double-way axleHeavy-duty forklift special rear axle
Fork length1070mm extra thick forged forks (can be customized)
Hydraulic lifting motor5000W brushless AC motor
Steering modeHydraulic power steering
Climbing angle20°

Product highlights


  1. High operation flexibility: three-pivot forklift trucks are designed with three support points, usually with the front wheels as the driving wheels and the rear wheels as the steering wheels, and the steering center is located in the centerline of the vehicle, so the turning radius is much smaller than that of ordinary four-wheeled forklift trucks.


  2. High space utilization: With small turning radius, the width of the stacking aisle is relatively small when the three-support forklift trucks carry out the stacking operation.


  3. Reduced driver's work intensity: When drivers drive three-pivot forklifts in the warehouse and other environments, they do not need to worry too much about colliding with shelves and other obstacles, and can devote more energy to cargo handling operations, making the operation easier and more comfortable.


  4. Better stability: The three-point support design of three-pivot forklift trucks can provide better support on uneven ground, which makes the forklift trucks have higher stability during traveling and operation and reduces the risk of overturning. Especially in some indoor warehouses where the ground conditions are relatively good, but there may still be a small area of unevenness, the stability advantage of the three-pivot forklift trucks can guarantee the safety of the operation.


  5. Low Maintenance Costs: The drive system, braking system and other components of three-pivot forklift trucks usually adopt advanced technology and design, such as the use of highly efficient and maintenance-free AC motors, maintenance-free wet disc braking system, etc. These components have a longer service life and lower failure rate, which reduces the frequency and cost of repair and maintenance. Meanwhile, the intelligent programmable LCD display is capable of displaying fault codes, facilitating quick detection of bodywork faults, improving maintenance efficiency and further reducing maintenance costs.


GC-F2.0S is the ideal solution for you to cope with the era of co-existence of heavy load and environmental protection.

Strong performance, solid structure, and pure electric drive help efficient and safe modern warehousing and industrial transportation.


Contact us now to get customized configuration and real-time quotation.
