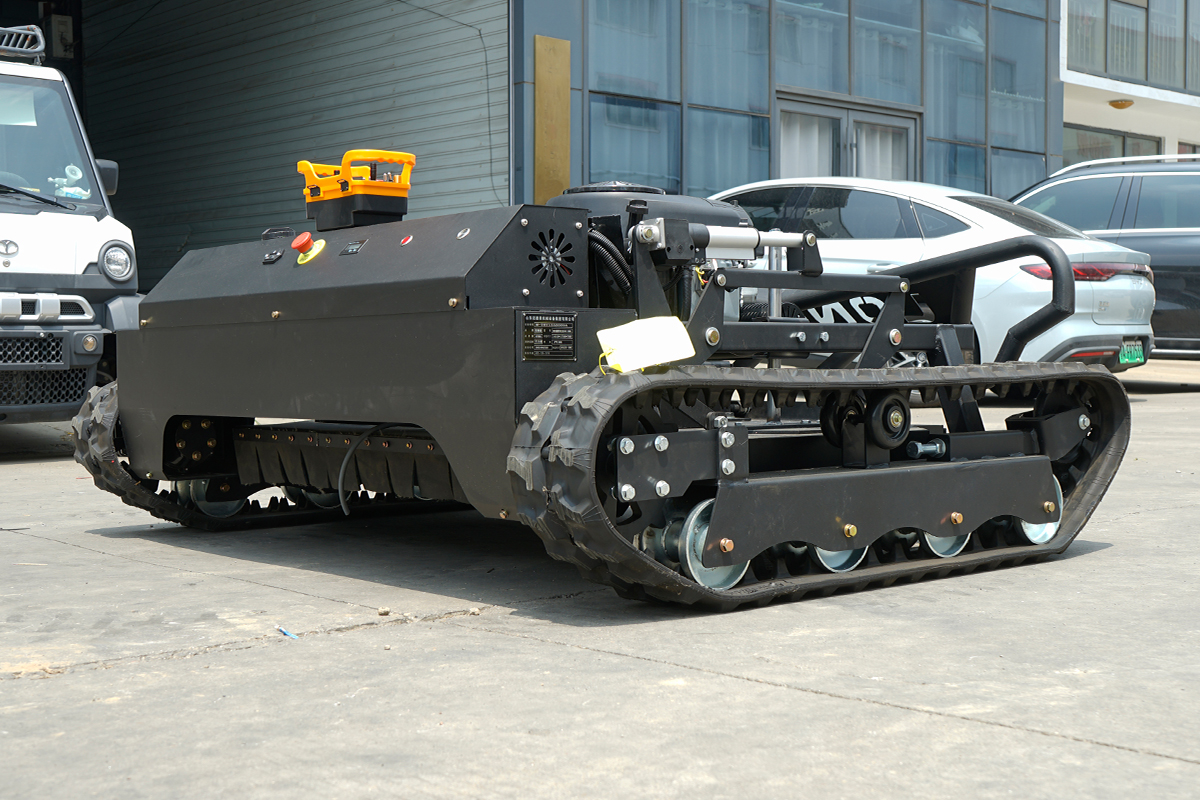

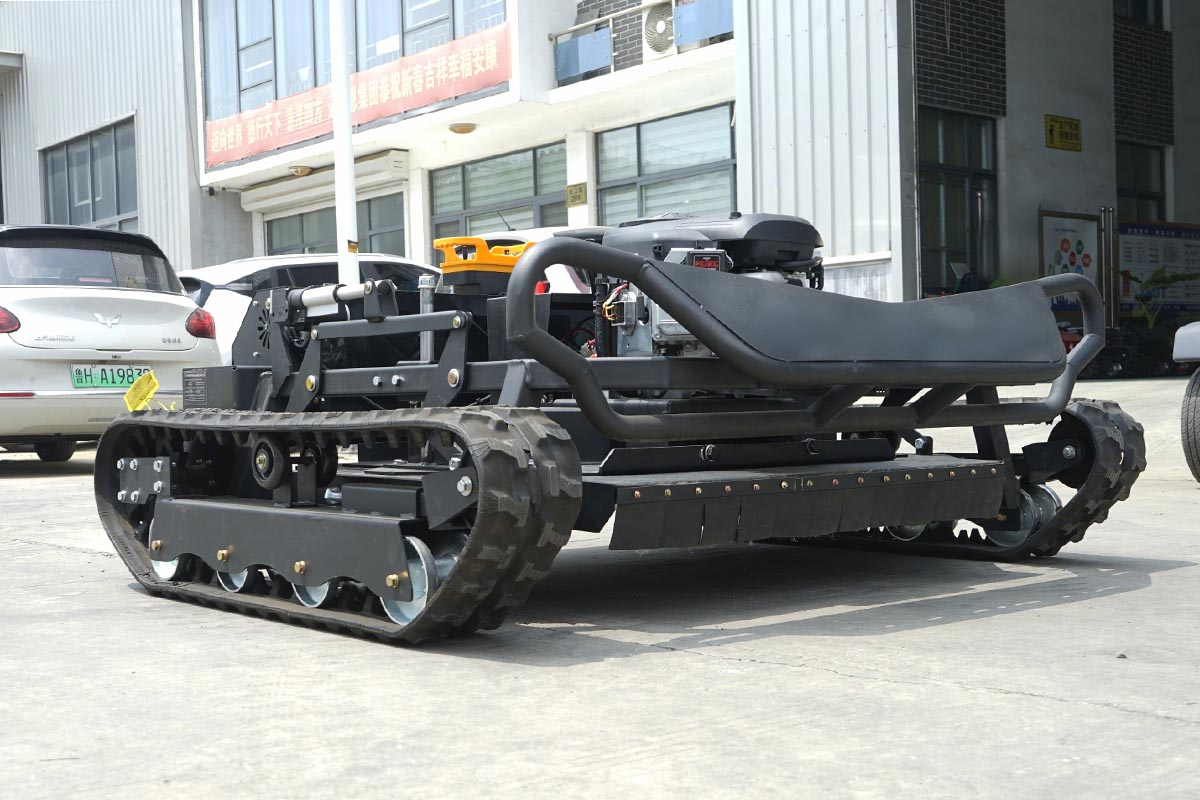

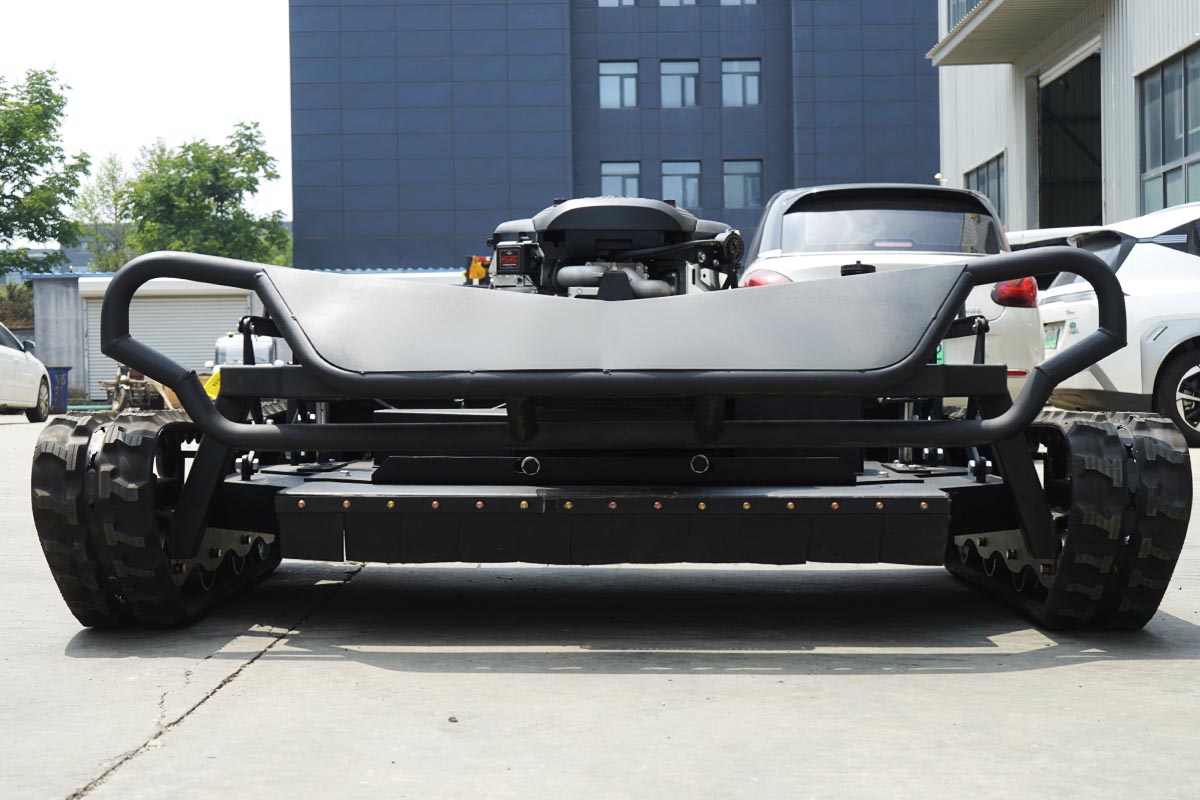

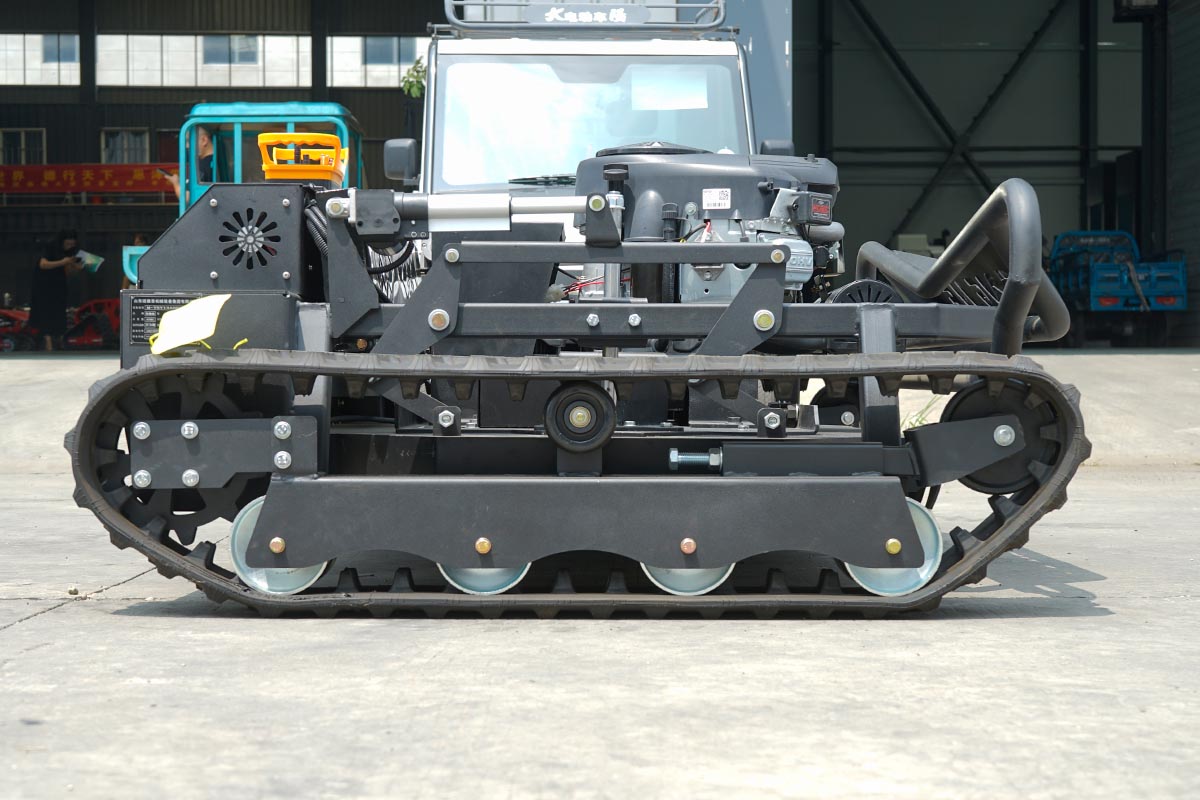

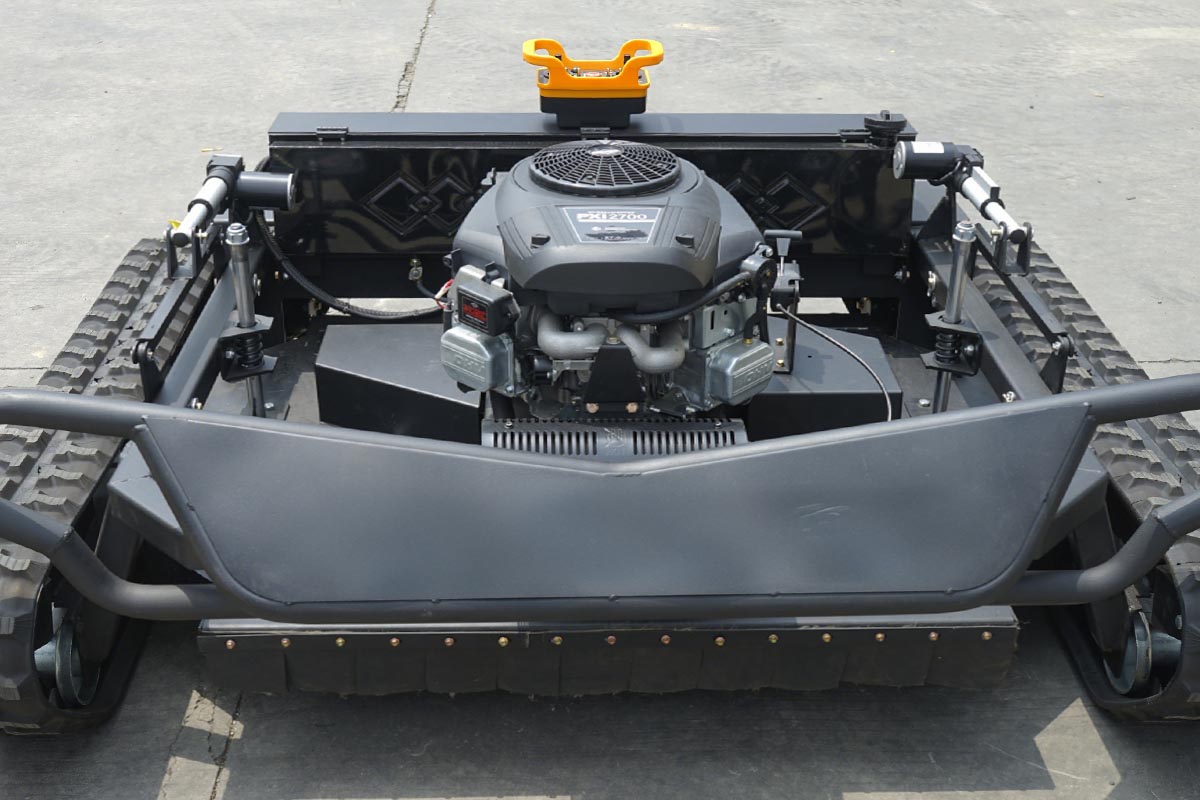

The GC-L810-130L Off-Road Track Mower is a highly efficient mower designed for large and complex terrains. 400KG bare weight with a practical 1430*1710*680mm frame makes it robust and flexible. Equipped with 27P strong power, dual-disc and 2-blade design, 1300mm wide cutting width with electric crawler self-propelled, it can easily cope with 60°steep slopes, and its working efficiency can reach 3500-4500m2/h. It supports remote start and 200m remote operation, which provides safe and efficient mowing solutions for large areas such as river embankment berms, large-scale orchards, photovoltaic power stations, and other large-scale scenarios.
Usage Scenarios
Wide maintenance of river embankment and highway berm: Facing the steep slope of river embankment or highway berm at 60°, the tracked walking provides strong grip and the weight of 400KG body enhances the stability to avoid skidding and overturning. 1300mm wide mowing width with double disc and 2 dumping knives design covers a large area at a time and cuts the high density grass and bushes with ease. The operator can start the equipment by remote control and control it safely from 200m away, and the efficiency of 3500-4500㎡/h speeds up the maintenance of long-distance slope.
Large-scale photovoltaic power plants: In large-scale photovoltaic power plants, the 1710mm body width is suitable for the distance between photovoltaic panels, and the crawler does not crush the photovoltaic foundation; the 10-200mm blade lifting range can accurately control the height of cutting grass, and it is able to remove the under-board weeds close to the ground to avoid blocking the generation of electricity; and the double-blade high-speed rotating cutting can efficiently deal with the weeds even if they are entangled. Remote control operation is flexible to avoid the photovoltaic support, no need to manually enter the equipment gap, to protect the safety of power plant facilities.
Large-scale trimming in 10,000 acres of orchard: In 10,000 acres of orchard, 1430mm overall length of the machine takes into account the flexibility and stability of the operation, and the crawler walking does not compact the soil to protect the root system of the fruit trees. 1300mm wide mowing width reduces the number of round trips and the adjustable speed of 0-5KM/H can be adapted to different areas -- slow cutting around the fruit trees for fine trimming and fast cutting for efficient mulching between rows. Efficient mulching between rows. Dual blade design cuts more evenly, avoids weed residue and reduces the risk of orchard pests and diseases.
Main parameter
Model | GC-L810-130L |
Scope of application | River embankment and highway berm, orchard, lawn, under photovoltaic panels, barren grass, etc. |
Package specifications | 1480mm*1780mm*95mm (L×W×H) |
Complete machine specifications | 1430mm*1710mm*680mm (L×W×H) |
Mowing width | 1300mm |
Travel speed | 0-5KM/H |
Maximum working slope | 60° |
| Working efficiency | 3500²-4500²/H |
| Cutter lifting range | 10-200MM |
Operation mode | Remote control |
Travel mode | Motorized crawler self-propelled |
Maximum remote control distance | 200m |
Power | 27/ps |
| Number of blades | Dual Knife Disc 2 Throwing Knife |
| Starting Method | Electric start |
| Working form | Vertical Axis |
Why GC-L810-130L
Ultra-wide double knives, efficient coverage: 1300mm ultra-wide mowing width with double knife disk 2 dumping knife design, cutting area is 40% higher than ordinary models, 3500-4500 square meters/h working efficiency allows large plots of land to be completed quickly, the double knife disk rotary cutting more uniform, high density weeds, weeds and bushes are easily handled.
60° Climbing, safe and controllable: 60° maximum climbing angle + electric crawler walking, with 400KG body weight, steep slope operation without skidding or overturning; 200m remote control operation + remote start, the operator is far away from the dangerous area, completely solve the safety hazards of working on steep slopes and high grass areas.
Flexible adaptation, common to many scenes: 10-200mm blade lifting range accurately control the height of mowing, close to the ground mowing lawn, high mowing grass is fully adapted; 1710mm width of the body to take into account the flexibility of traveling and stability of the operation, the crawler walking on the ground pressure is small, the orchard, photovoltaic panels and other scenes do not damage the foundation.
Convenient operation, reliable and durable: remote start + remote operation simplifies the use process, no need to follow manually; 400KG machine weight + high quality tracks to resist abrasion and impact, the vertical axis working form and 27P power system are mature and stable, simple daily maintenance, prolonging the service life of the equipment.
