GC-FE60

Products

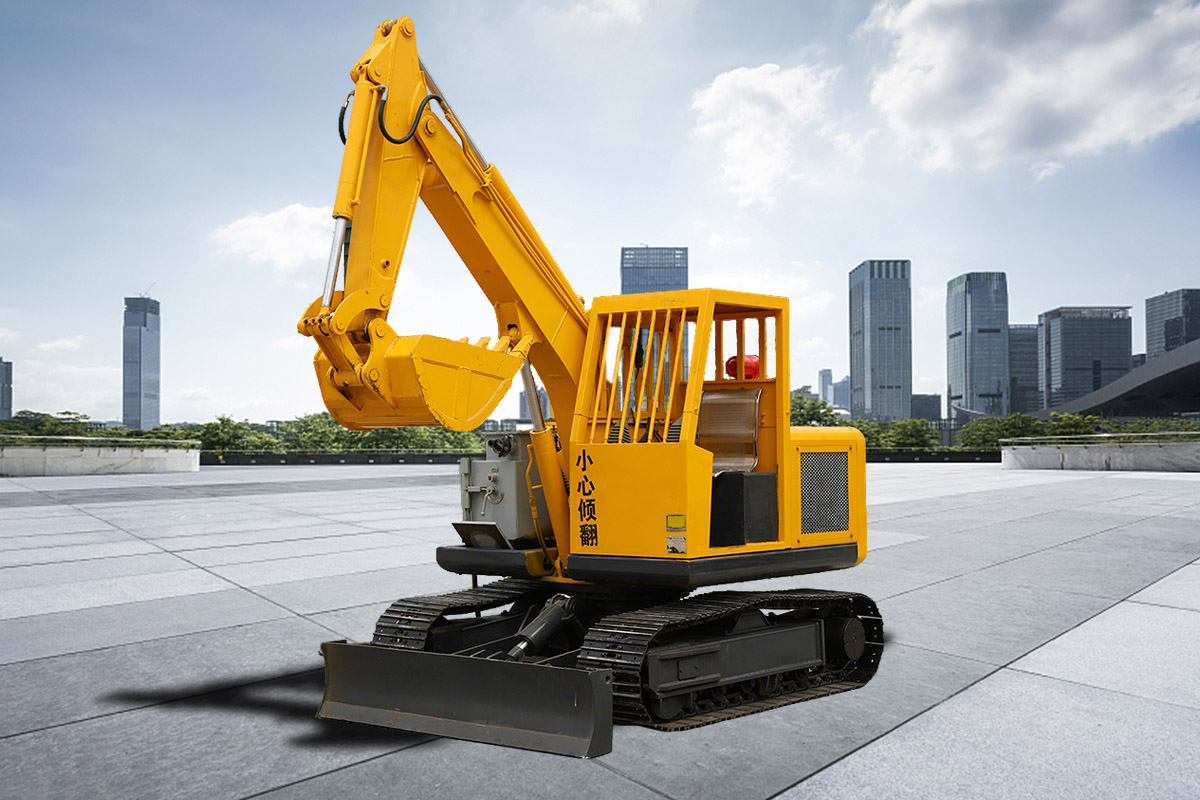

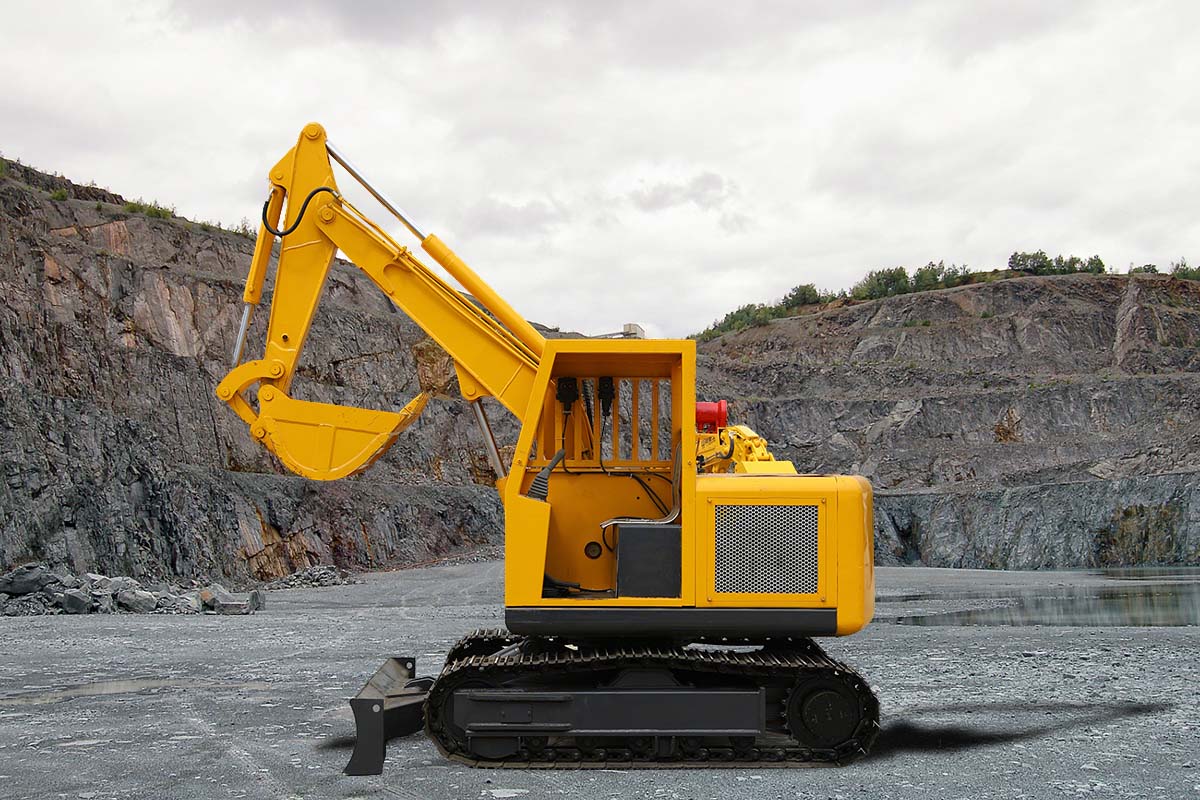

GC-FE60 explosion-proof excavator is a high-efficiency work equipment specially designed for flammable and explosive hazardous environments. It adopts a three-section boom working mechanism, the auxiliary arm can rotate ±90°, with 360° rotating angle, the working range is wide and flexible. 45kw motor power provides strong power, the rated pressure reaches 23.5mpa, the capacity of the bucket is 0.3m³, and the digging force of the bucket is 35KN, which can easily cope with all kinds of excavation tasks. Meanwhile, the whole machine is equipped with professional explosion-proof design, which provides efficient solutions for hazardous environment operations under the premise of safety protection.

Usage Scenarios

Factory construction: In the chemical plant where flammable and explosive gases exist, the explosion-proof feature of GC-FE60A can effectively avoid the safety risk. 1600mm width can shuttle in the narrow passage between the equipment in the plant, and the overall dimensions of 3500mm×1600mm×2350mm are suitable for the complex environment of the plant, and the bucket capacity of 0.3m³ and strong excavation force can efficiently complete the equipment foundation excavation and pipeline laying trench digging work. With 0.3m³ bucket capacity and strong digging power, it can efficiently complete equipment foundation excavation, pipeline laying trench digging, etc. The bulldozer, with a width of 1600mm×height of 370mm, is also capable of site leveling, which can greatly enhance the efficiency of chemical plant construction.

Underground coal mine operation: gas and other explosive gases exist in the coal mine, the explosion-proof design of the excavator is the key to safe operation. 6.0T vehicle weight with steel tracks, ground pressure ≤ 0.1mpa, can adapt to the uneven road surface without damaging the base plate; 15 ° climbing ability can cope with the sloping sections of the underground; 3830mm maximum unloading height and 2,500mm maximum digging depth to meet the underground roadway trimming, coal mine construction, and the construction of the coal mine, the excavator can be used for the construction of the underground roadway and the coal mine. The maximum discharge height of 3830mm and the maximum excavation depth of 2500mm can meet the requirements of downhole roadway repair and coal seam peripheral cleaning, and ensure the safety and order of downhole work.

Oil and gas field peripheral engineering: GC-FE60A can work safely and efficiently in dangerous areas around oil and gas field drilling platforms or along oil pipelines, etc. With a digging radius of 4800mm and a maximum lifting height of 5200mm, it can cover a large working area, and can easily complete the tasks of platform foundation reinforcement and pipeline trench digging, etc. Its impact frequency is 600-1100rpm, and it has an impact frequency of 600-1100rpm. The GC-FE60A has an impact frequency of 600-1100rpm and an impact energy of 350j, and with the 53mm adapted brazing tool specification, it can also carry out small crushing work, realizing the multi-purpose use of the machine.

Main parameters

Why GC-FE60

1. Explosion-proof safety, worry-free operation: The whole machine adopts professional explosion-proof design, which can work safely in flammable and explosive environments such as chemical industry, coal mine, oil and gas field, effectively avoiding safety accidents caused by sparks generated by the operation of the equipment, and providing a reliable safety guarantee for the operating personnel and the surrounding facilities.




2. Flexible and efficient, wide range: three-section arm working mechanism with auxiliary arm ±90° rotation and 360° rotation angle, high operational flexibility, digging radius up to 4800mm, the maximum height of the boom 5200mm, can cover a wide range of operating areas, reduce the number of equipment movement, improve operational efficiency.




3. Strong power and diversified functions: 45kw high-power motor and 23.5mpa rated pressure provide strong power, and 35KN bucket digging force can easily complete all kinds of excavation tasks; meanwhile, it has the function of impact crushing, adapting to different operational needs, realizing multi-purpose use, and reducing the cost of equipment investment.




4. Strong adaptability, stability and reliability: steel track design with ≤0.1mpa ground pressure and 300mm ground clearance can adapt to a variety of complex ground, and 15° climbing ability can cope with sloping operating environment; 6.0T weight to ensure the stability of the operation, reduce the occurrence of failures, and extend the service life of the equipment.

Contact us today for customized configurations and real-time quotes.
