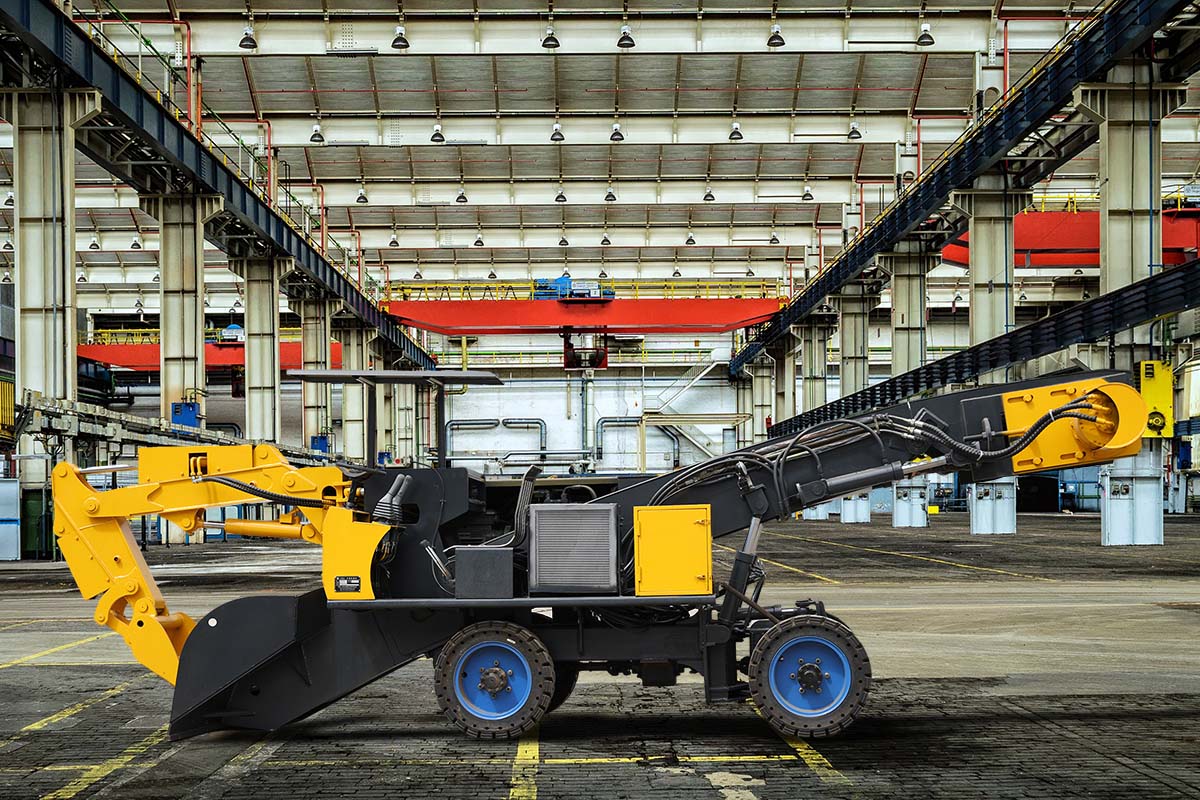

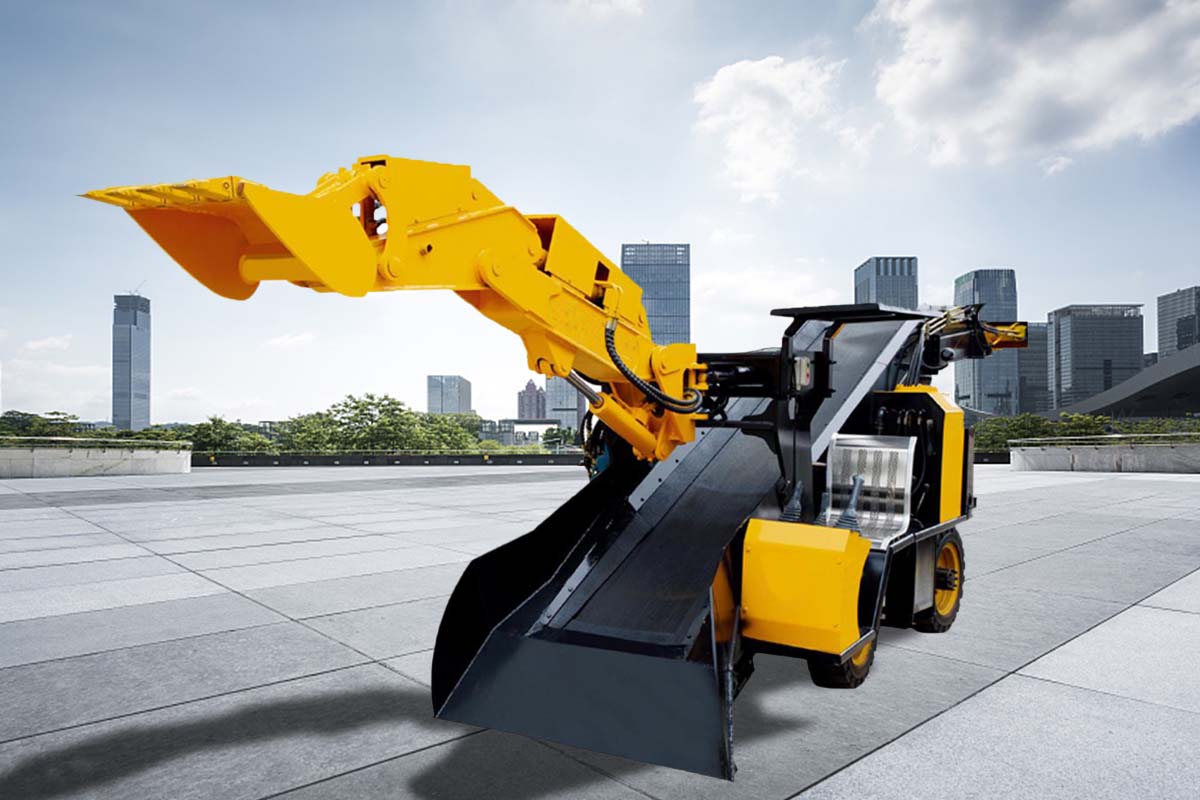

GC-M60LC tire conveyor belt type slag raking machine, is the hard ground slag clearing operation “efficiency bear”.5.2T lightweight body with 5600mm×1650mm×1700mm compact body, action free not bulky.18.5kw/22kw strong motor drive, with 20mpa rated working pressure, loading capacity up to ≈60m³/h. With tire walking system and efficient conveyor belt mechanism, whether it is the city underground “capillary” construction, or mine roadway daily maintenance, it can quickly and easily. With the tire walking system and efficient conveyor belt mechanism, whether it is the “capillary” construction under the city or the daily maintenance of the mine roadway, it can quickly strike and accurately complete the slag removal and transportation of the whole process of operation, pressing the “ fast-forward button” for the construction of the project. Fast-forward button" for the construction of the project.
Usage Scenarios
Urban pipe network “minimally invasive surgery”: in the urban underground pipe network laying and repair, like a skillful “surgeon”. ≤ 10 ° of climbing ability and stable grip of the tires, so that it in the city hardened road as smooth; 2.2km / h walking speed, in the narrow construction area with ease. 1650mm width and 1700mm height, easy to pass through the narrow operating space, ± 45 ° of the flexible slewing angle, with ≥ 4200mm digging width, quickly clean up the construction of the dirt, adjustable Adjustable unloading parameters are suitable for all kinds of transportation vehicles, making the pipeline network construction efficient and smooth.
Small Tunnel “Scavenger”: Entering small tunnels, it transforms into a tireless “scavenger”. Minimum turning radius of 3600mm, in the tunnel bends flexible turning without pressure; 1800mm - 2700mm digging height and 2450mm digging depth, the tunnel dirt in one net. 810mm × 580mm × 420mm large size material through the ability to easily cope with large pieces of soil and stone, stable conveyor belt efficient transportation of materials for the subsequent construction of the tunnel to clean up a clean site. clean site for the subsequent construction of the tunnel.
Mining roadway “Guardian Guardian”: In the mining roadway, it is the “Guardian Guardian” to guarantee the passage. The tires provide good grip, 200mm ground clearance without fear of ground bumps, and stable operation in hard ground roadways. With ≈60m³/h loading capacity and strong digging performance, it can quickly clean up the accumulation of slag and keep the roadway free at all times, escorting the mining work.
Main parameters
Model | GC-M60LC | GC-M80LC |
Weight | 5.2T | 6.8T |
Overall dimension(LxWxH) | 5600mm×1650mm×1700mm | 6000mm×1750mm×1800mm |
Loading Capacity | ≈60m³/h | ≈80m³/h |
Min turning radius | 3600mm | 4500mm |
Climbing ability | ≤10° Hard ground | ≤10°(Hard ground) |
Traveling Speed | 2.2km/h | 2.2km/h |
Ground clearance | 200mm | 260mm |
Nominal working pressure | 20mpa | 20mpa |
Motor Power | 18.5kw/22kw | 22kw/30kw |
Max.materials by size(LxWxH) | 810mm×580mm×420mm | 810mm×680mm×500mm |
Applicable section(WxH) | ≥1.8m×1.8m | ≥2.2m×2.2m |
Excavating Width | ≥4200mm | ≥4800mm |
Excavating Distance | ≥1600mm | ≥1850mm |
Excavating Height | 1800mm-2700mm | ≥2800mm |
Excavating Depth | 2450mm | ≥800mm |
Uninstall Height | 1200mm-1600mm Can be heightened | 1350mm-1650mm(Can be heightened) |
Minimum Loading Height | 1200mm Variable | 1300mm(Variable) |
Uninstall Distance | 1600mm Can be lengthened | 1600mm(Can be lengthened) |
| Max.rotation angle | ±45° | ±45° |
Why GC-M60LC
Smart figure, easy to shuttle on hard ground: the light weight of 5.2T is perfectly combined with the tire travel system, which provides smooth driving and flexible steering on hard ground, and the smallest turning radius of 3600mm with the compact body allows the machine to ride freely in the narrow construction area and arrive at the work point quickly.
Surging power, slag clearing a step ahead: 18.5kw/22kw motor and 20mpa rated working pressure, ≈ 60m³/h of ultra-high loading capacity, with strong digging performance, instantly “sweep away” the slag, significantly shorten the project time and improve the overall efficiency.
Precise control, adapt to a thousand changes in working conditions: ± 45 ° large turning angle, adjustable digging and loading and unloading parameters, with large-size materials through the ability to accurately adapt to ≥ 1.8m × 1.8m a variety of operating sections; flexible unloading height and distance adjustment, easy to adapt to different transportation vehicles, all kinds of engineering scenes can be easily managed.
Reliable and durable, easy to maintain: Selected high-quality core components, combined with mature manufacturing process, to ensure stable operation of the equipment for a long time. Tire-type design structure is simple, daily maintenance is simple and convenient, effectively reduce the maintenance cost and time cost, is the choice of engineering construction.
