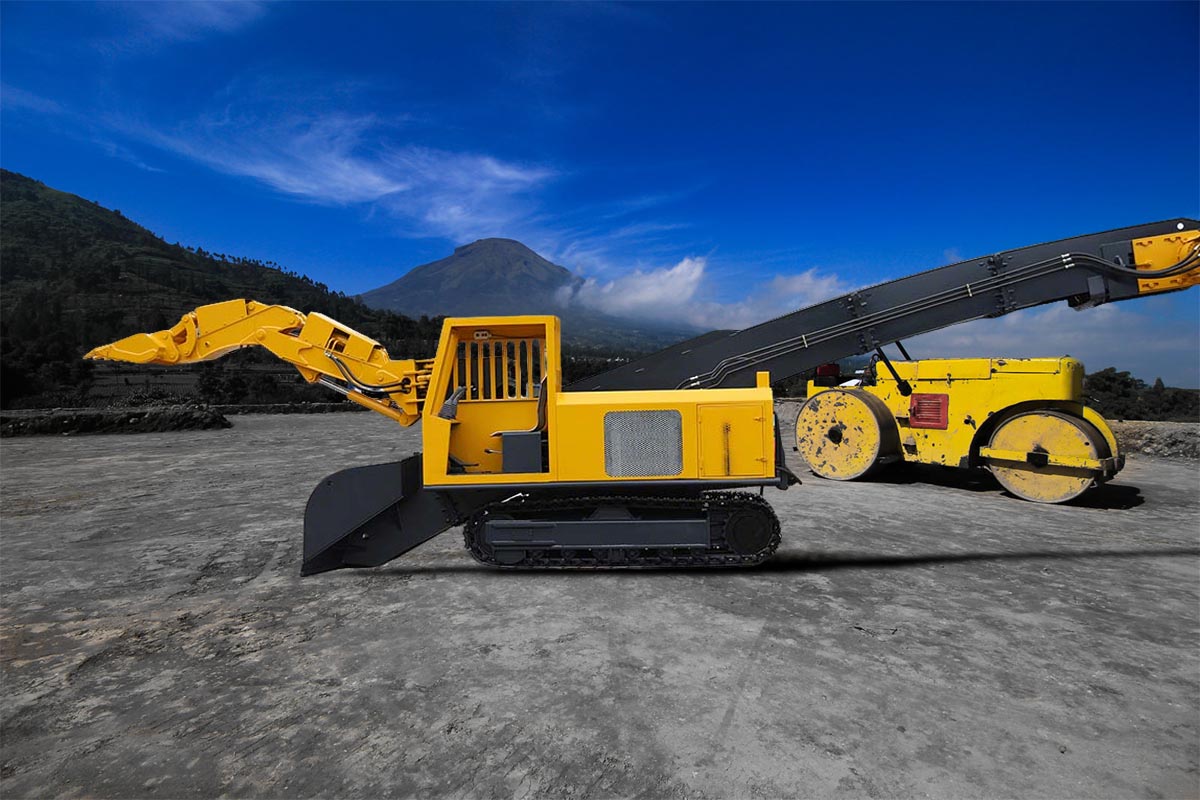

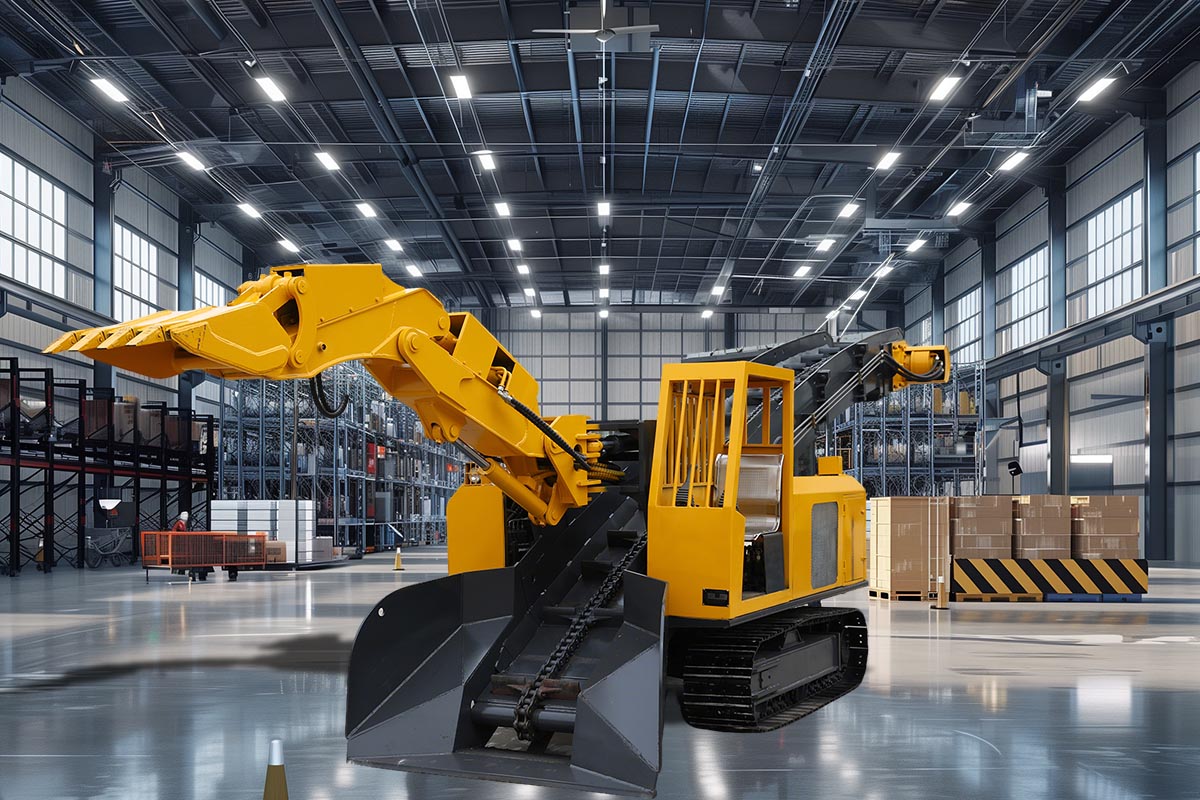

GC-M80T crawler type scraper conveyor slag raking machine is specially designed for heavy-duty engineering slag clearing operation. Machine weight 8.8T/10.8T, with 6100X1800X1800 external dimensions, stable to deal with complex working conditions. 30kw/37kw motor power drive, loading capacity up to ≈ 80m³/h, double-chain, double-driven or single-chain, single-driven scraper transport mechanism, combined with strong digging and conveying performance, whether it is deep mining, or large-scale tunneling, can efficiently complete the task of slag removing and transportation, is a project progress booster. Whether it is deep mining or large tunnel construction, it can efficiently complete the task of slag removal and transportation, which is a powerful booster for the progress of the project.
Usage Scenarios
Large-scale mining: In deep mining, GC-M80T can easily climb inclined roadways with its ≤32° climbing capacity and crawler design; its ≈80m³/h loading capacity and ≥4800mm digging width can quickly clean up a large amount of slag after blasting, and its 2.15/3.8km/h traveling speed ensures efficient round-trip transportation and guarantees uninterrupted mining operations.
Long tunnel construction: in the face of long-distance, large cross-section tunnel projects, its ≥ 2.3X2.3m section and 1800mm machine height, easy access; ± 50 ° of the maximum slewing angle with ≥ 1700mm digging distance, flexible cleaning tunnel corners of the slag; can be heightened 260mm high clearance and adjustable unloading height, distance, adaptable to different transportation vehicles, to accelerate the efficiency of tunnel slagging. Slag efficiency.
Underground comprehensive pipeline corridor construction: in the underground pipeline corridor construction scenario, GC-M80T's double-chain, double-drive scraper transportation mechanism can stably transport slag to avoid material spills; ≥500mm digging depth and ≥2800mm digging height can efficiently deal with the earth; the width of the inner side of the track can be widened by 1000mm, which can increase the stability of the equipment in the soft ground, and help the construction of the corridor to move forward smoothly.
Main parameters
Model | GC-M80T | GC-M120T |
Weight | 8.8/10.8T | 10.8/15.8T |
Overall dimension(LxWxH) | 6100mm×1800mm×1800mm | 7800X1900X2200 |
Loading Capacity | ≈80m³/h | ≈120m³/h |
Ground clearance | 260mm Can be heightened | 300mm Can be heightened |
Nominal working pressure | 25mpa/35.5mpa | 25mpa/35.5mpa |
Traveling Speed | 2.15km/h/3.8km/h | 2.15km/h/3.8km/h |
Motor Power | 30kw/37kw | 37kw/45kw |
Max.materials by size(LxWxH) | 650mm×600mm×650mm | 650×700×780mm |
Applied tunnel gradient | ≤30° Adapt to the ground | ≤30°Adapt to the ground |
Applicable section(WxH) | ≥2.3m×2.3m | ≥2.6m×2.6 |
The inside track width | 1000mm Can be widened | 1215mm Can be widened |
Transport form of scraper | Double-chain and dual-drive Single-chain and single-drive | Double-chain and dual-drive Single-chain and single-drive |
Climbing ability | ≤32°Adapt to the ground | ≤32°Adapt to the ground |
Excavating Width | ≥4800mm | ≥5300mm |
Excavating Distance | ≥1700mm | ≥1970mm |
Excavating Height | ≥2800mm | ≥3090mm |
Excavating Depth | ≥500mm | ≥550mm |
Uninstall Height | 1646mm Can be heightened | 1760mm Can be heightened |
Minimum Loading Height | 1470mm Variable | 1480mm Variable |
Uninstall Distance | 1600mm Can be lengthened | 1700mm Can be lengthened |
Max.rotation angle | ±50° | ±55° |
Why GC-M80T
Heavy-duty and efficient, accelerate the project: ≈80m³/h ultra-high loading capacity, combined with strong excavation performance, quickly deal with a large amount of slag, significantly shorten the time of the project slag removal, and accelerate the overall construction progress.
Flexible and adjustable, precise operation: ±50° large rotary angle, adjustable digging parameters and loading and unloading height and distance, as well as double chain / single chain dual drive mode, so that the equipment in all kinds of complex working conditions can be accurately operated, adapted to the needs of different projects.
Terrain conqueror, unhindered access: ≤32° climbing ability, 260mm height clearance and widenable track design, it can easily cope with inclined, rugged, soft and other complex ground, and travel smoothly in mine tunnel and other special environments.
Stable and reliable, durable: 30kw/37kw high power motor and 25/35.5 high rated working pressure provide continuous and stable power; high quality tracks and scraper transportation mechanism ensure the equipment to run stably for a long time under high-intensity operation, and reduce the maintenance frequency and cost.
Contact us today for customized configurations and real-time quotes.
