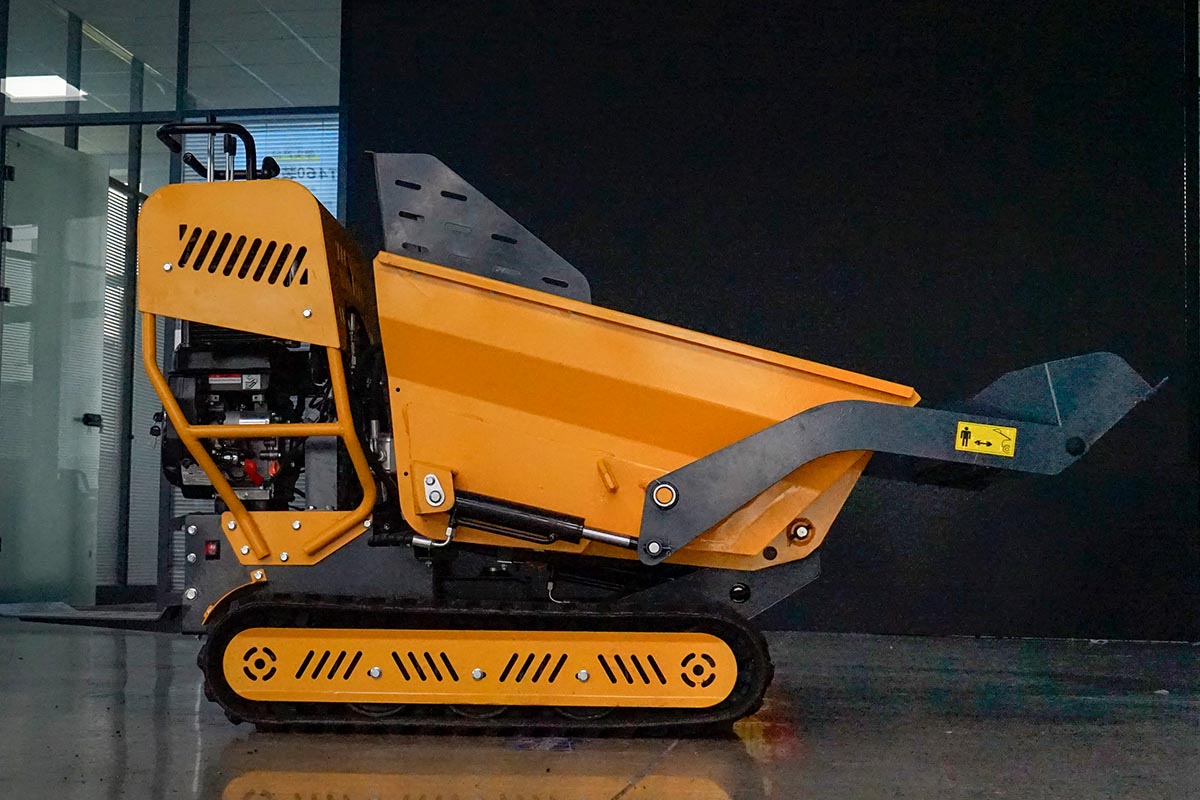

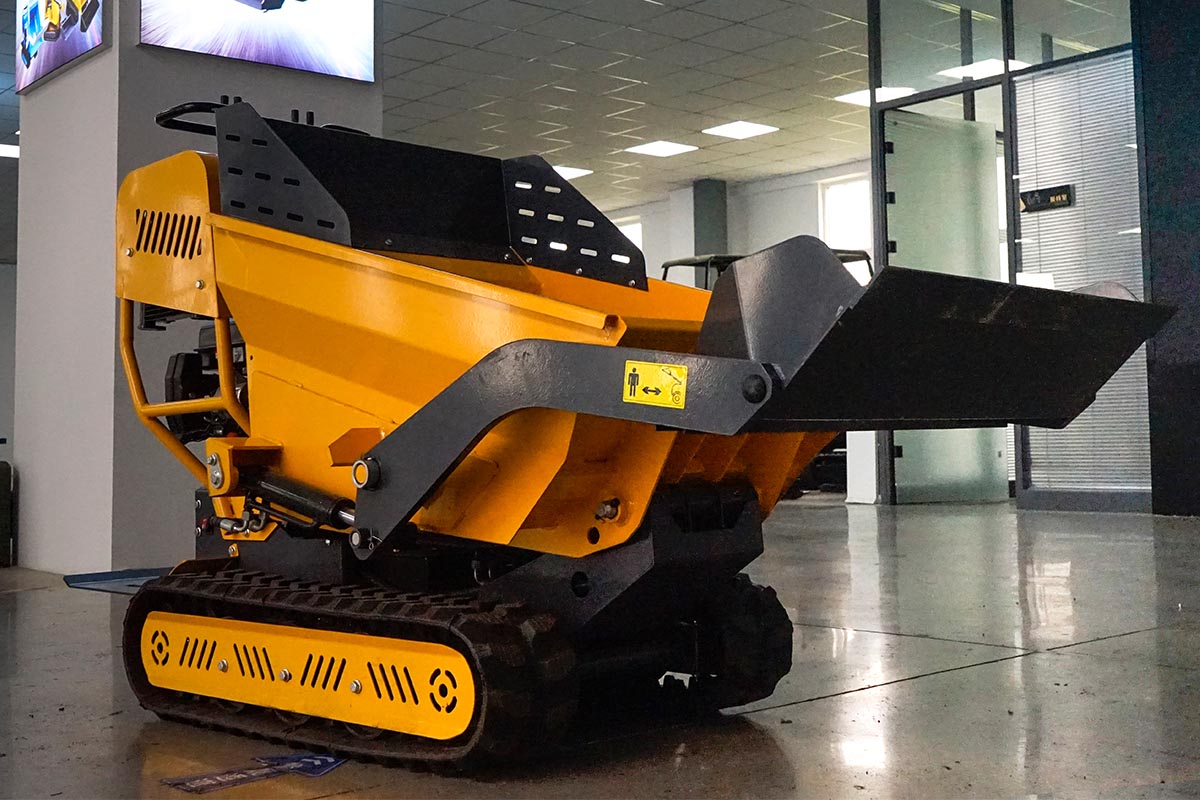

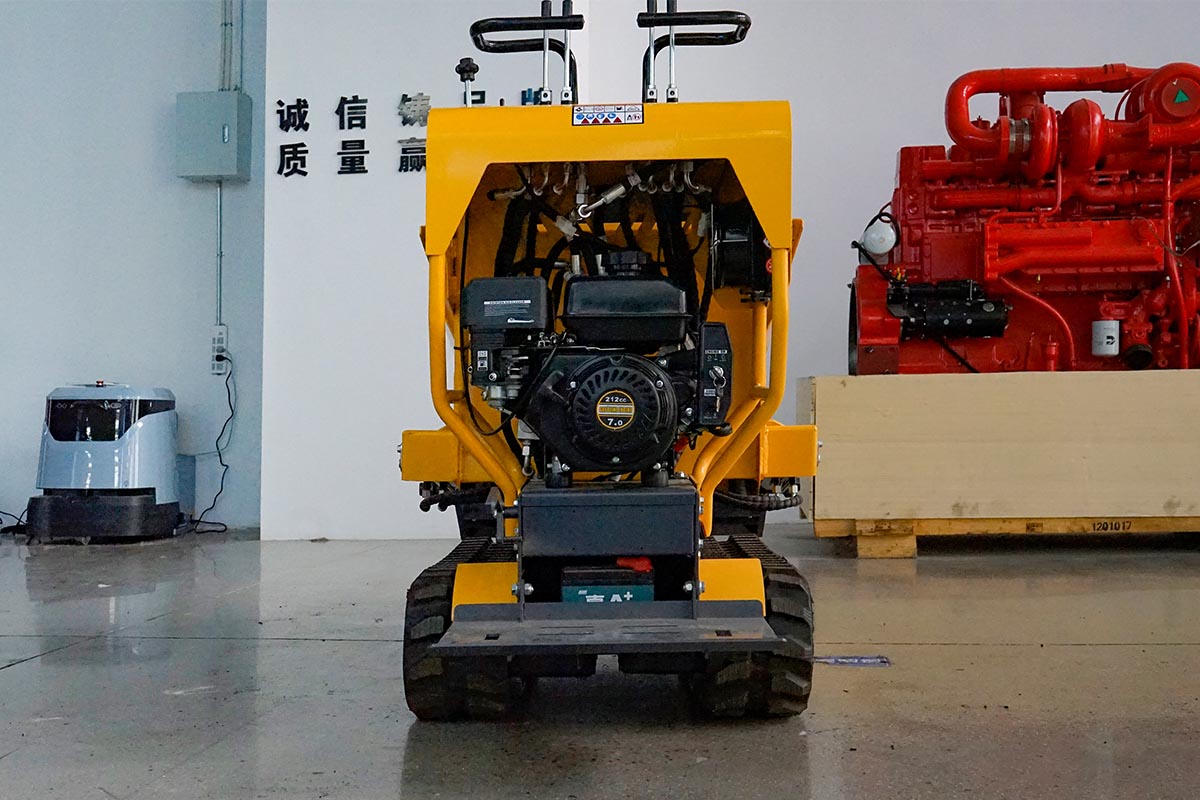

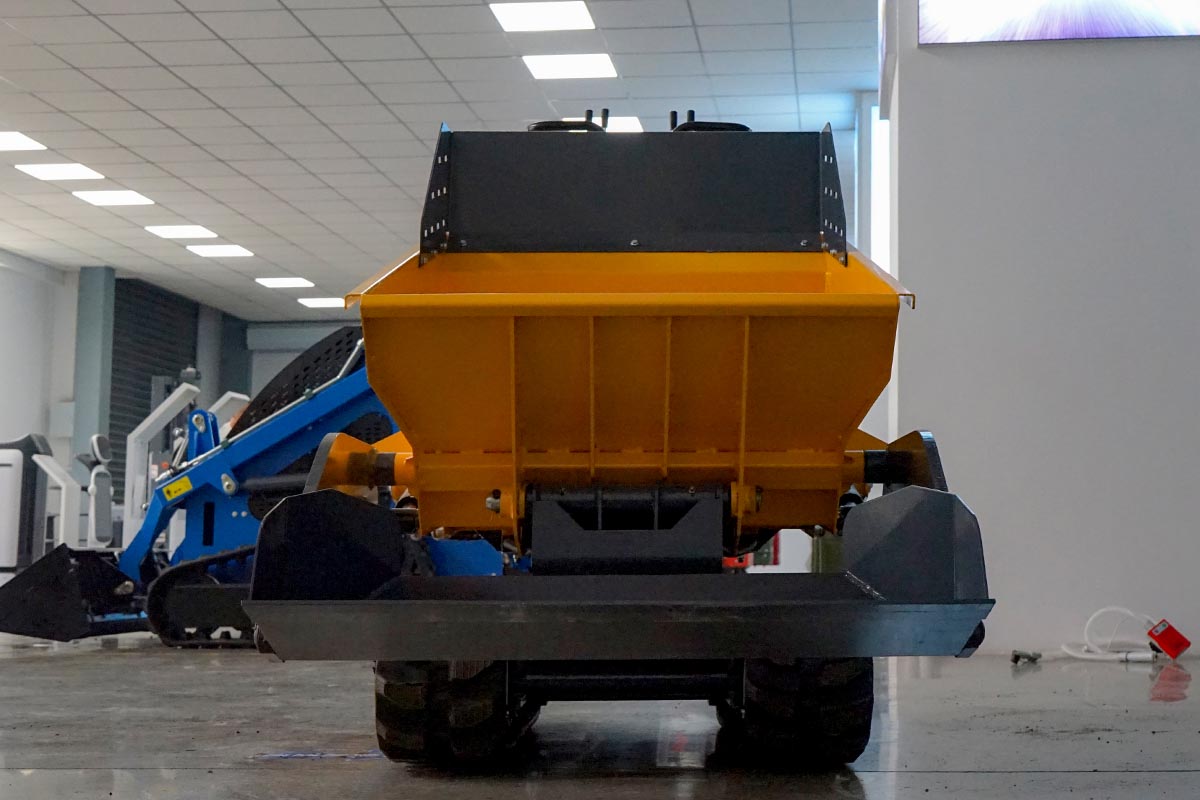

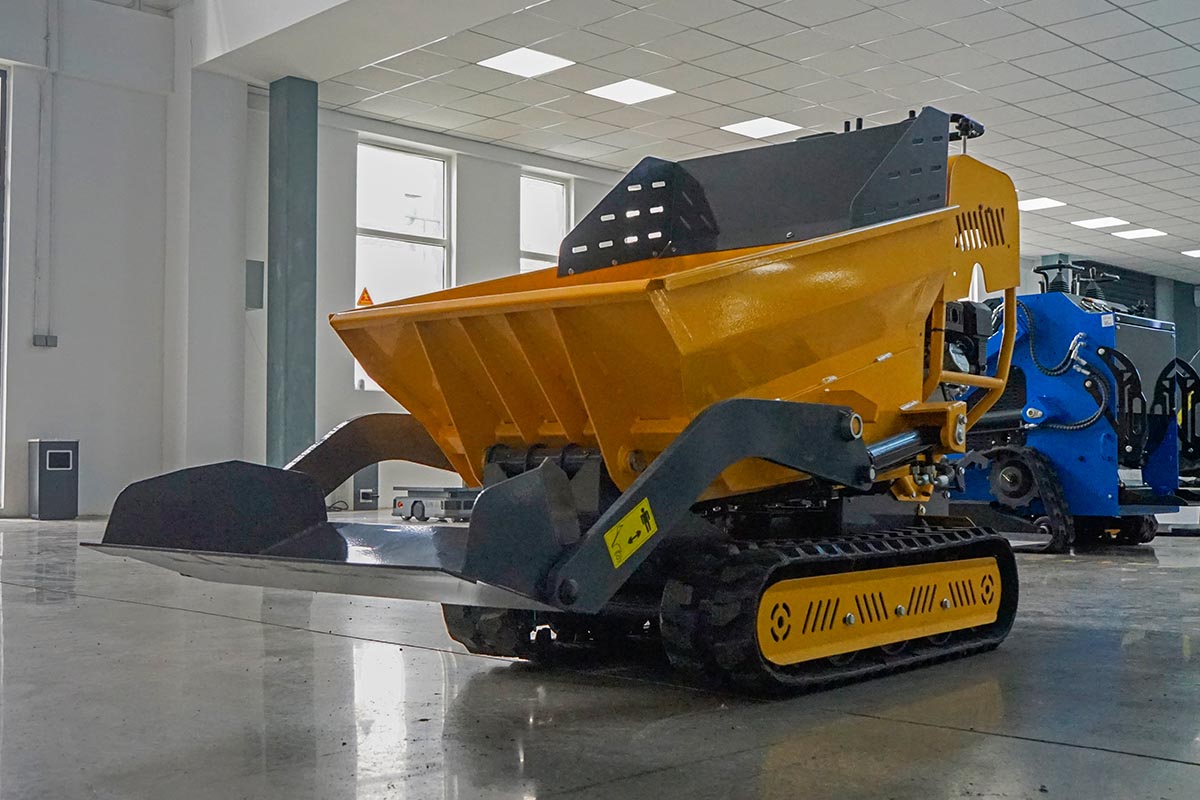

GC-Dumper is specially designed for working in narrow and complex terrain. Equipped with single-cylinder naturally-aspirated engines of Kopper, Runtong or Bailitong, respectively providing 4.2/4.8/4.78kw rated power, the power output is stable and reliable, and it meets the stringent emission standards of Euro 5/EPA, which is environmentally friendly. The vehicle weighs only 400Kg, but has a maximum loading capacity of 500Kg, with 0.22m³ cargo box volume, with the tracked design, even in the mud, rugged and other poor road conditions, can also be efficiently completed the task of material transportation and loading and unloading, it is the ideal helper for small-scale engineering, agricultural operations.
Usage Scenarios
Mountain orchard operation: In mountain orchards with large slopes and complicated terrain, GC-Dumper can easily climb steep slopes and transport picked fruits and fertilizers by virtue of its 20° climbing ability and track design, and its minimum ground clearance of 85mm avoids the chassis from being cut off and does not damage the fruit trees and the ground.
Indoor decoration material transfer: in residential buildings, office buildings and other indoor decoration scenarios, its 1517x870x1278mm compact body can freely enter and exit the elevator, narrow hallways, 0.22m³ container volume to meet the needs of short-distance decoration garbage removal, building materials handling, the smallest turning radius of only 950mm, turning and flexible, to avoid collision.
Landscape construction: In parks, courtyards and other landscape construction sites, to cope with narrow paths and soft ground, the crawler tracks enhance the grip to prevent skidding and trapping; the adjustable walking speed of 1.7/3.5 (km/h) can be adapted to different operating rhythms to efficiently complete the transfer of earthworks, stone and other materials.
Farm and Ranch Transportation: In farms and ranches, handling feed, hay, or transporting livestock products, its stable loading capacity and compact body, shuttling between barns and warehouses, providing convenience for daily production.
Main parameters
Model | GC-Dumpers |
Engine model | Kopp/Runton/Paragon |
Rated power | 4.2/4.8/4.78kw |
Cylinders | 1 |
Intake | Naturally aspirated |
Emission standard | Euro 5/EPA |
Fuel capacity | 3.5L |
Oil capacity | 0.6L |
LxWxH | 1517x870x1278mm |
Tank capacity | 0.22m³ |
Hydraulic oil number | 46# Anti-Wear Hydraulic Fluid |
Hydraulic tank capacity | 7L |
Climbing capacity | 20 |
Minimum ground clearance | 85mm |
Minimum turning radius | 950mm |
Crawler center distance | 520mm |
Travel speed | 1.7/3.5(km/h) |
Maximum torque of travel motor | 805Nm |
Maximum working pressure of travel motor | 20MPa |
Displacement of travel motor | 200cc |
Brand of travel motor | Liko Hydraulic |
Totals weight | 400Kg |
Maximum load capacity | 500Kg |
Why GC-Dumper
Compact and Flexible, Freedom of Movement in Narrow Spaces: With a miniature size of 1517x870x1278mm and a minimum turning radius of 950mm, it can move freely and steer flexibly in both indoor alleys and mountain trails, and easily reach the working place.
Crawler support, complex terrain is as smooth as level ground: crawler design with 20° climbing ability and 85mm minimum ground clearance, to enhance the grip and passability, mud, steep slopes, gravel roads and other complex road conditions can not stop the pace of its forward movement.
Stable power, efficient and reliable operation: Multi-brand engine provides stable power output, 500Kg powerful load and 0.22m³ cargo box volume, combined with adjustable travel speed, to meet diversified operational needs and enhance work efficiency.
Environmentally friendly and worry-free: it meets the Euro 5/EPA emission standards and is not restricted by environmental protection policies; it is suitable for agriculture, renovation, gardening and other fields, providing reliable support for all kinds of engineering operations.
Contact us today for customized configurations and real-time quotes.
