Product Description

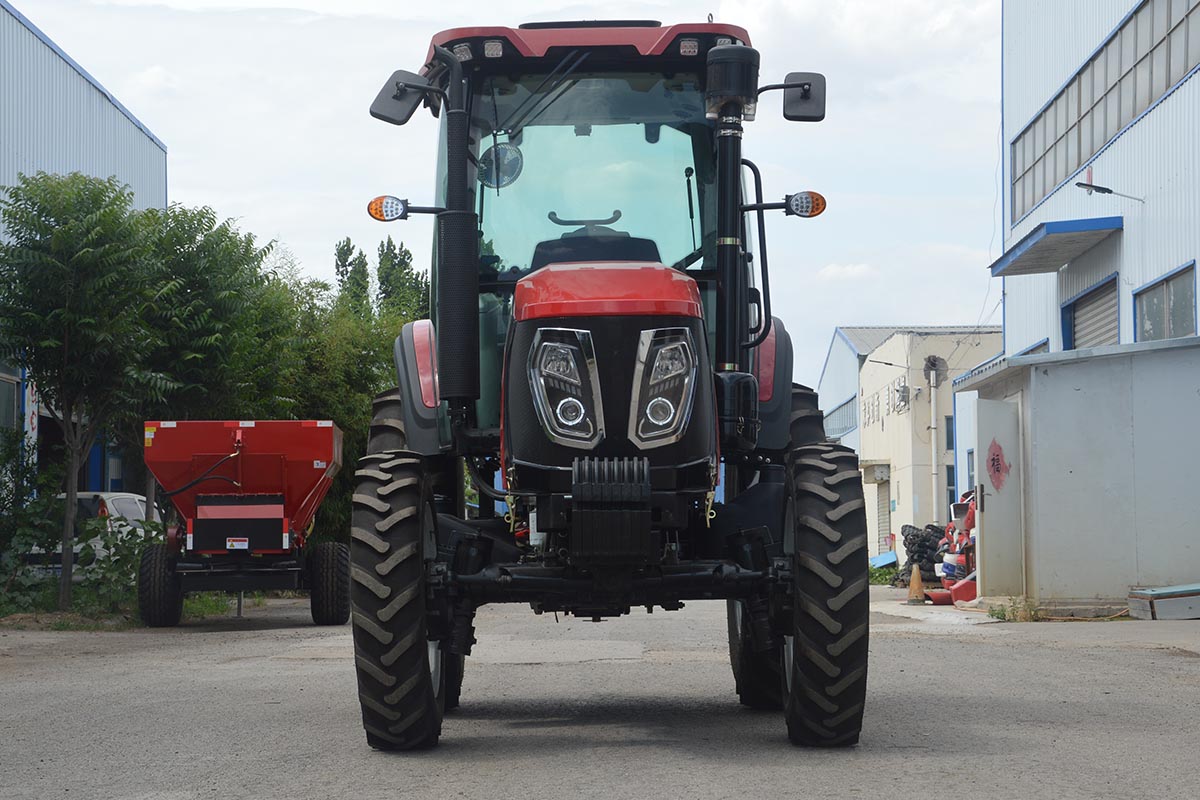

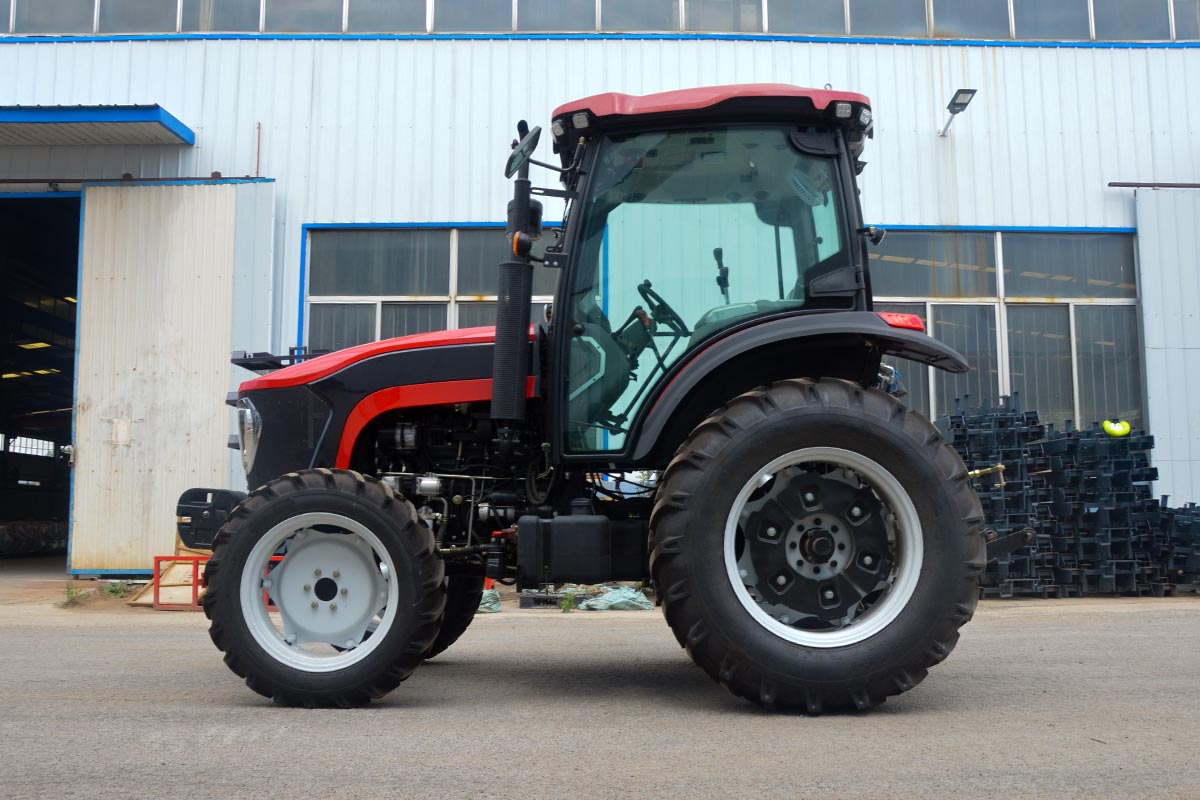

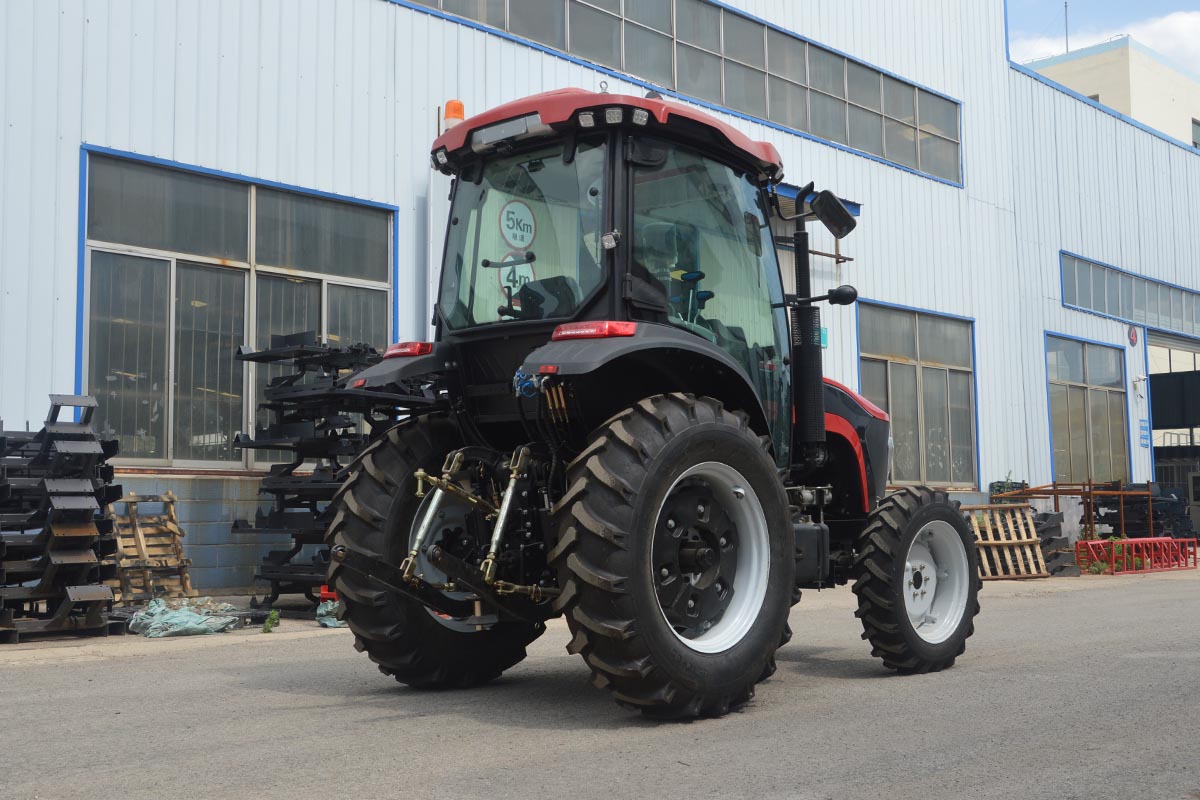

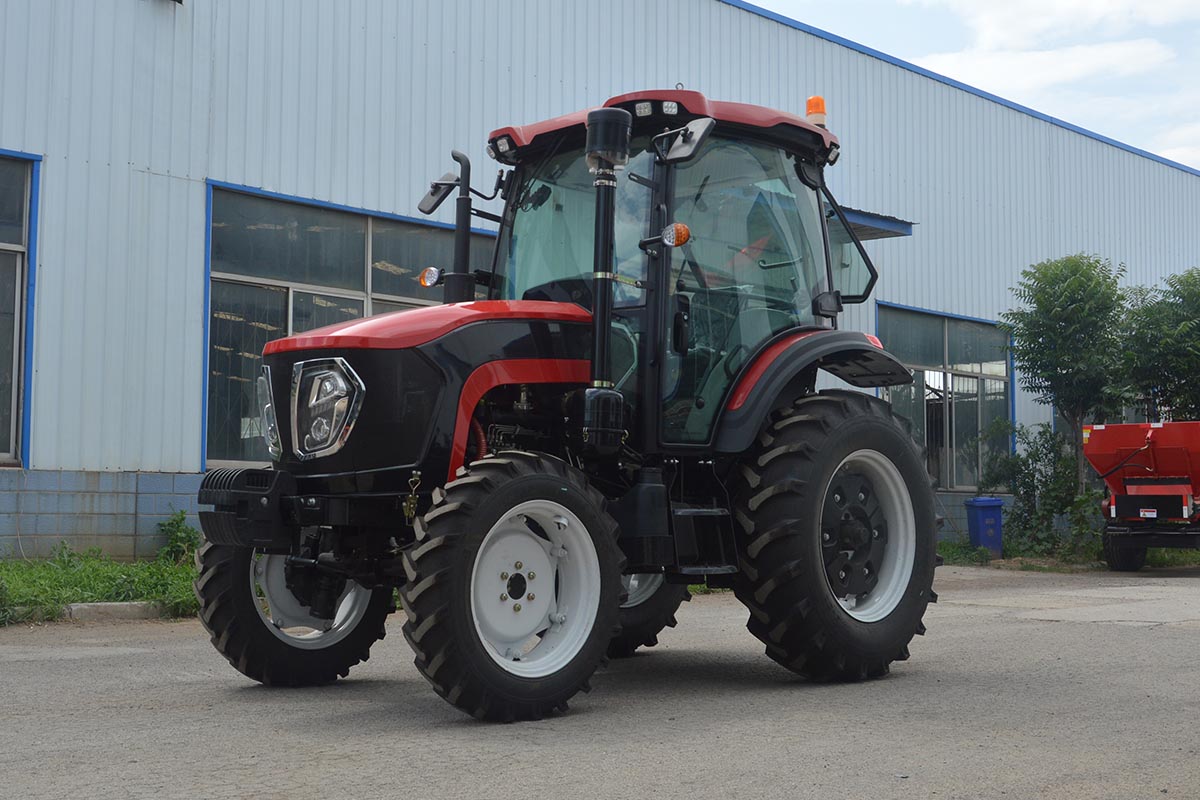

GC-T1604L wheeled four-wheel-drive tractor is a high-efficiency power machine specially designed for modernized agricultural production. Equipped with Weifang 6108 self-priming engine of Huake and Huashen, it generates 113kW of strong power, and the double-acting clutch ensures stable and efficient power transmission. 4WD drive type combined with hydraulic steering system makes the tractor flexible and easy to operate; 24+8 gears with 1-55km/h forward speed and 1-30km/h backward speed are suitable for a variety of operating rhythms; and the three hydraulic outputs and ≥36KN calibrated traction force can easily meet the needs of all kinds of farm equipment mounting. With three hydraulic outputs and ≥36KN calibrated traction force, it can easily cope with all kinds of agricultural implements, and with excellent performance, it becomes a reliable main force for farmland operation.
Scenarios
Whether it's muddy paddy fields, rolling hills, or vast plains, this tractor can handle it with ease. It is suitable for a variety of agricultural scenarios such as plowing, sowing, rotary plowing, transportation, etc. It meets your needs in the whole process from land reclamation to crop transportation, and significantly improves the efficiency of agricultural production.
Main parameters
Model | GC-T1604L |
Horsepower | 160hp |
Drive Type | 4WD |
Engine | Huako/Huashen and other Weifang engine 6108 self-priming |
Engine Power | 113kW |
Clutch | double-acting |
Power Output Speed | 760/850rpm |
Power Output Spline Number | 8 |
Calibrated Traction | ≥36KN |
Structural Mass | 4500kg |
Steering Form | Hydraulic steering |
Hydraulic Output | three sets of hydraulic outputs |
Gear | 24+8 |
Speed Range | Forward 1h-55km Backward 1h-30km |
Tire Model | 14.9-24/18.4-38 |
Wheelbase | 2450mm |
Overall Dimensions (L*W*H) | 4200mmX2100mmX3100mm |
Why choose GC-T1604L
Surging power, efficient operation: 113kW high-power engine with double-acting clutch, strong and stable power output, ≥36KN calibrated traction force can easily cope with all kinds of heavy-duty operations, greatly improving the efficiency of farmland operations.
Flexible control, precise operation: 4WD four-wheel drive system and hydraulic steering are perfectly matched, 2450mm wheelbase ensures flexible steering, even in narrow plots, you can travel freely; 24 + 8 gears and adjustable speeds accurately match the different operational needs, and realize refined operation.
Versatile expansion, multi-purpose: three hydraulic output interfaces can be quickly connected to rotary tiller, sprayer, bulldozer and other agricultural equipment, from cultivation to management, from transportation to infrastructure, to meet the needs of the whole process of agricultural production and reduce the cost of equipment procurement.
Stable and reliable, durable: 4500kg solid structural quality, with 14.9 - 24/18.4 - 38 large-size tires, driving smoothly on complex terrain; well-known brand engine and mature mechanical design, to ensure long-term stable operation of the equipment, reduce maintenance frequency.
Contact us today for customized configurations and real-time quotes.
