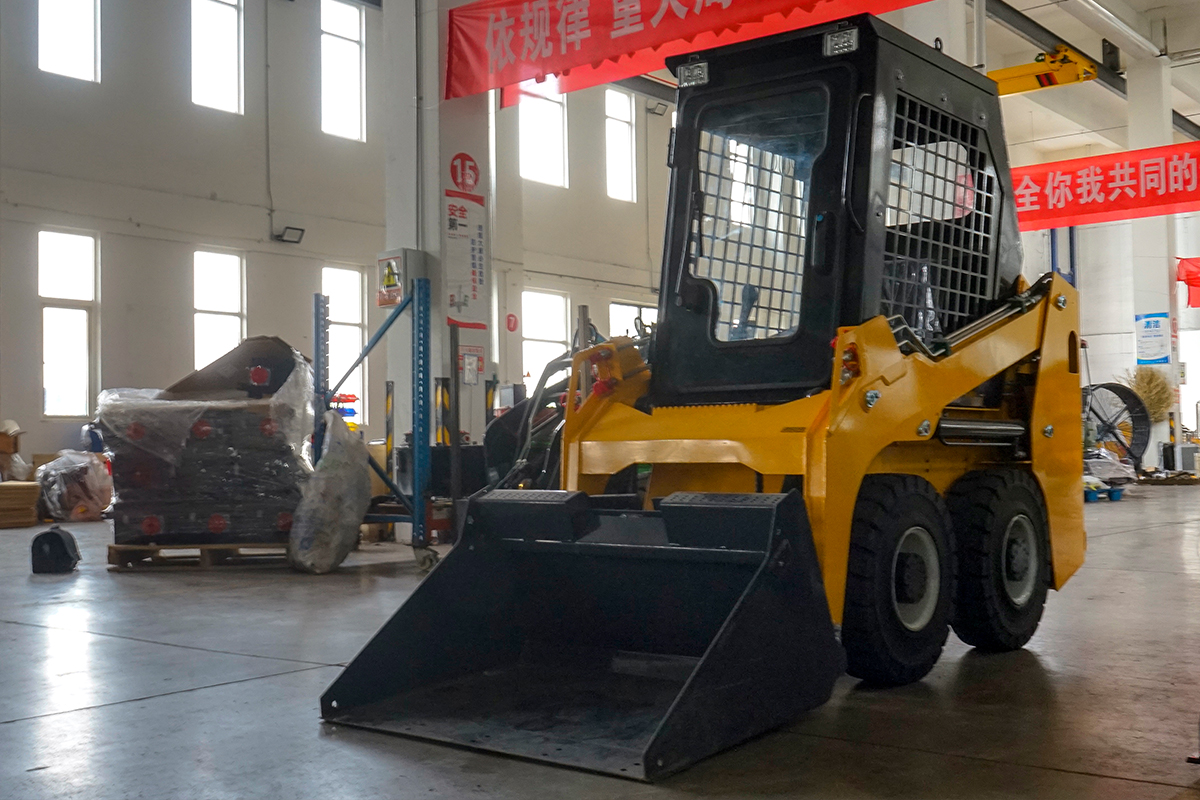

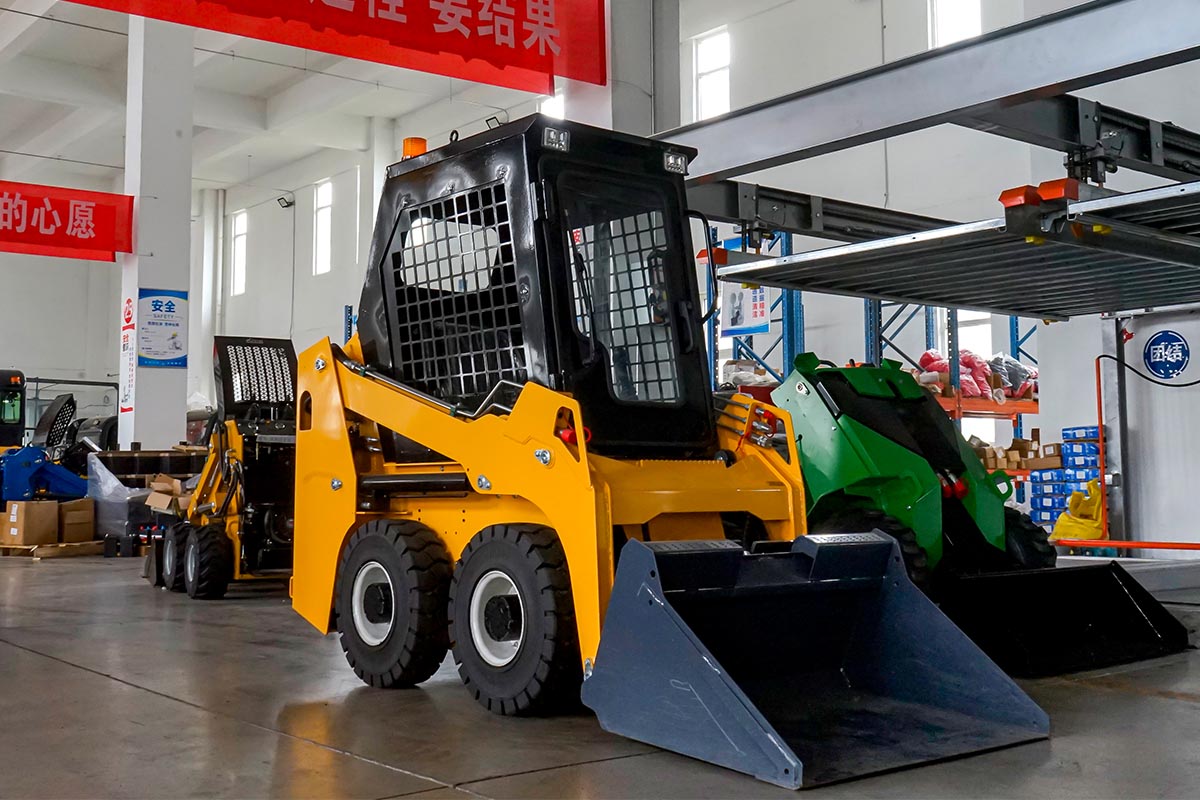

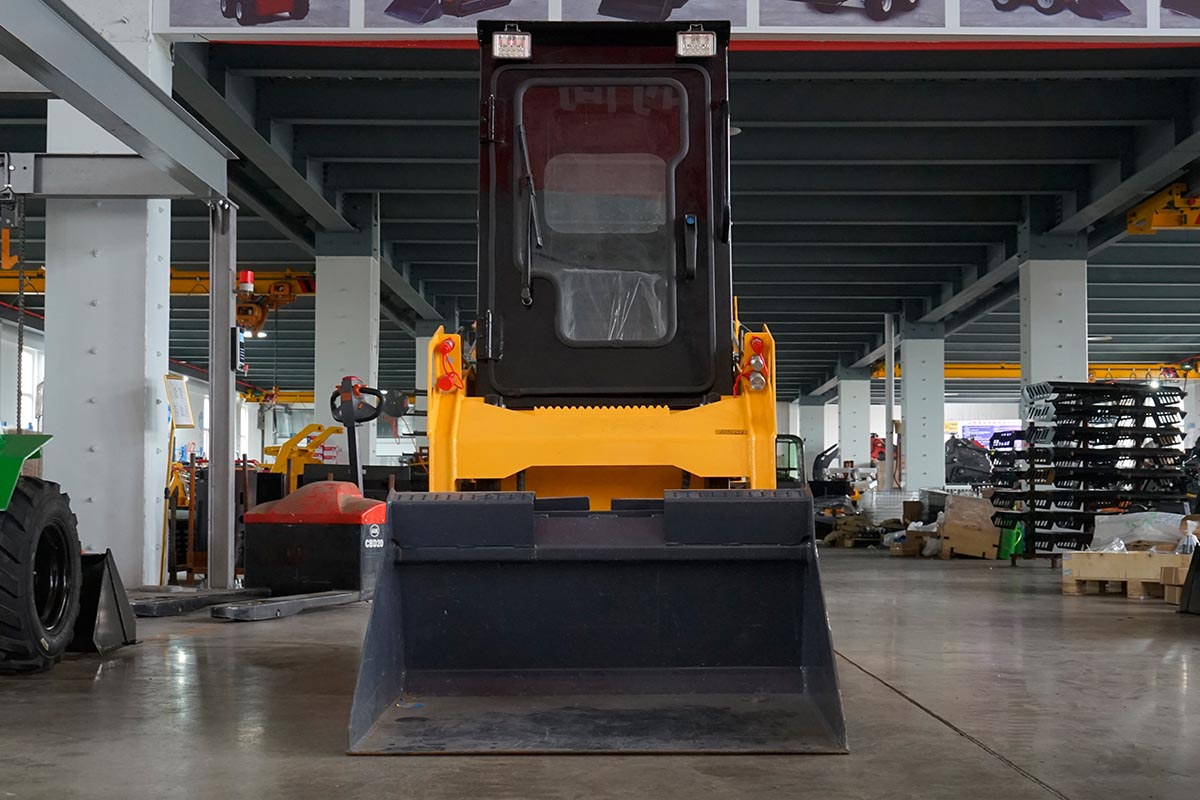

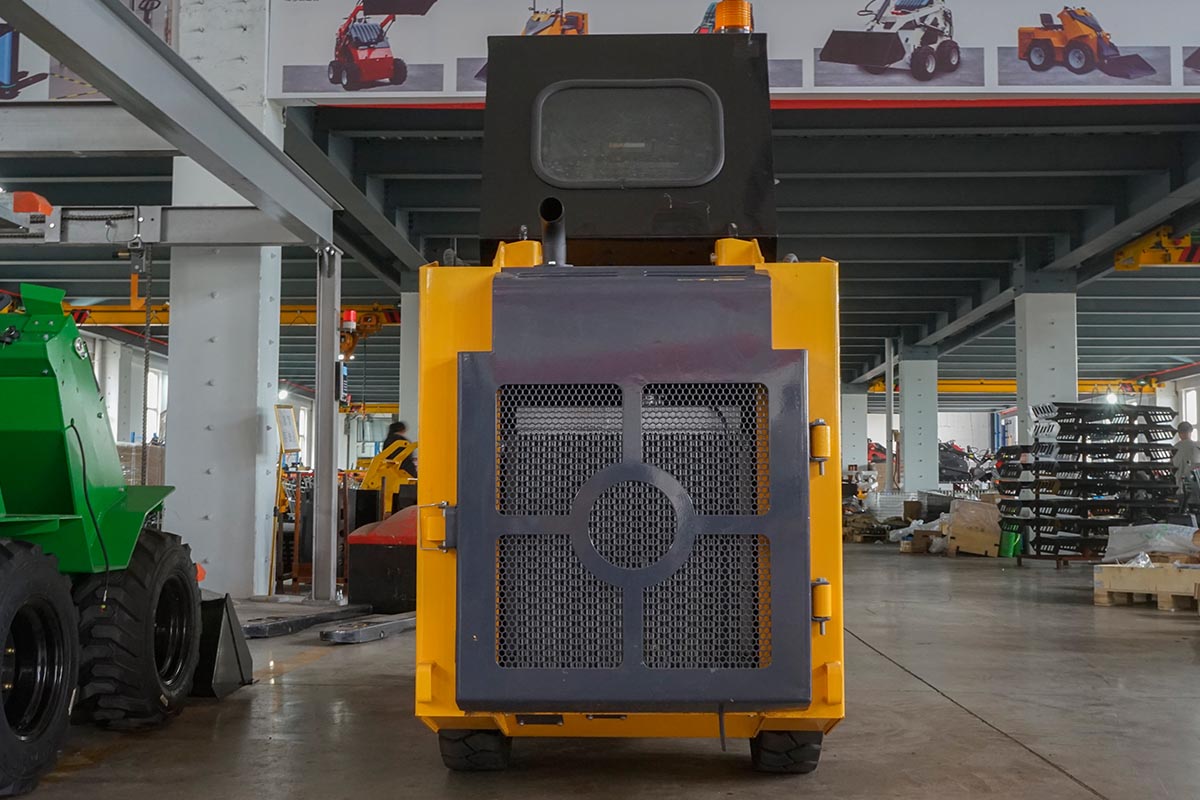

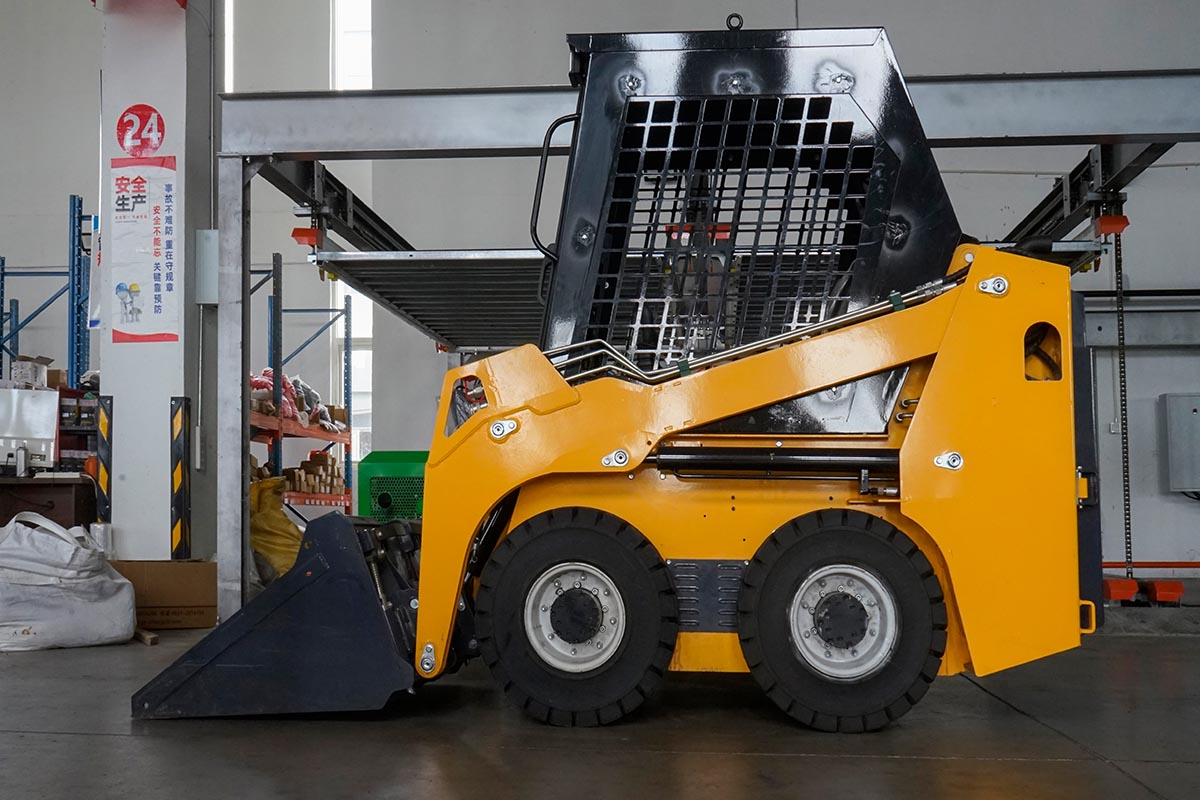

GC-S25L wheeled skid steer loader is specially designed for delicate and small space operation. Optional Leiden 385 or Yanmar 380 engine, respectively output 18.8kw and 17.8kw rated power, three-cylinder naturally-aspirated design, stable and responsive power, to meet the stringent emission standards of Euro 5/EPA, taking into account the high efficiency of the operation and green environmental protection. The whole vehicle weighs only 1200kg, with 390kg rated load, with 0.22m³ bucket volume, it can efficiently complete material handling and site operation in small space, which is a powerful assistant for small-scale engineering scenarios.
Usage Scenarios
Interior Decoration Project: In the renovation site of residential buildings and commercial spaces, the vehicle width of 950mm and the height of 1865mm make it easy to go in and out of elevators and narrow hallways for the transportation of construction garbage and renovation materials, and the length of the tail section of 500mm avoids rubbing against the obstacles in the narrow space.
Small farms and orchards: Shuttle between rows of fruit trees and greenhouses for fertilizer handling and fruit loading and unloading, with a driving speed of 7km/h to match the rhythm of fine work, and with a bucket ground turning angle of 30° and a maximum turning angle of 130°, it is convenient for precise loading and unloading of materials.
Yard and small municipal maintenance: handling gravel transfer for community road repair and earth moving for yard renovation, the compact size combined with 130mm ground clearance allows flexible driving on uneven road surfaces, and the 1000mm bucket width ensures operational efficiency.
Main parameters
| Model | GC-S25L |
Engine model | laidong385/yanmar3803 |
Rated power | 18.8kw/17.8kw |
Cylinder | 3 |
Intake | Naturally aspirated |
Emission standard | Euro 5/EPA |
Rated load | 390kg |
Maximum load | 490Kg |
Maximum digging force | 4.5KN |
Bucket volume | 0.22m³ |
Travel speed | 7km/h |
Operating items and | 9s |
Operating system pressure | 18bar |
Fuel tank volume | 30L |
Overall vehicle weight | 1200KG |
Tyre type | 570*155 |
Overall vehicle height | 1865mm |
Overall length with standard bucket | 2730mm |
Vehicle width | 950mm |
Overall length without bucket | 1865mm |
Bucket width | 1000mm |
Tail length | 500mm |
Maximum operating height | 3410mm |
Height to bucket pins | 2540mm |
Maximum height of the bucket lying flat | 2400mm |
Unloading height | 2000mm |
Unloading distance | 510mm |
Wheelbase | 730mm |
Ground clearance | 130mm |
Bucket tipping angle at ground level | 30° |
Tipping angle of the bucket at its highest point | 130° |
Why GC-S25L
Compact body, unobstructed travel: only 950mm width and 1865mm height, with 500mm short tail design, whether indoor buildings or narrow alleys, can freely shuttle, easy to arrive at the work site.
High efficiency and energy saving, economical and practical: fast work three and stable power output, to protect the operational efficiency; 30L fuel tank to reduce fuel consumption, dual engine options to adapt to different budgets and performance needs, reduce operating costs.
Flexible operation, precise work: 30°-130° bucket turning angle, combined with 2000mm unloading height and 510mm unloading distance, realize precise loading and unloading to meet the requirements of fine work.
Wide range of applications: Euro 5/EPA emission standards, applicable to many regions of the world; from renovation to agriculture, from yard to municipal, there is no limit to the application of multiple scenarios.
